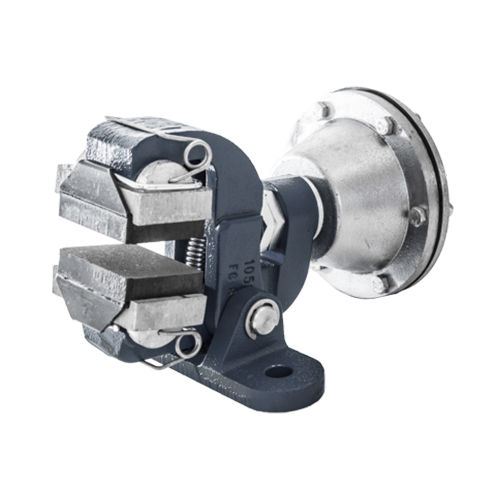

The most popular caliper series for medium-load applications in practically all areas of mechanical engineering. Different brake cylinders are available for this caliper type. Depending on the size of the cylinder, the braking force ranges from 160 to 1,900 N at 6 bar.

Directly pneumatically applied disc brakes are used in practically every area of mechanical engineering. The actuating force is created here through compressed air, and the brake is released by spring force. Its range of application spans from light uses such as web tension control to highly demanding applications such as holding and service brakes that can have a braking force up to 33,000 N with just one caliper, depending on the air pressure. There are almost no limits to the braking torque that can be generated, which depends on the brake disc diameter and the number of calipers!

Parameter Name	Parameter Value
Type	disc
Operation	pneumatic
Braking force	Min.: 0 NMax.: 1,100 N
