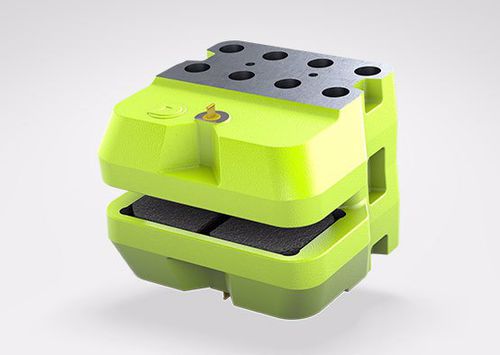

Hydraulic active yaw brake caliper

MAIN FEATURES
Hydraulically applied
Air gap between brake pad and disc up to 2mm per side
Special epoxy resin pad with GFK carrier plate
Tight fitting between brake pad and caliper
Drain ports for oil leakage, preventing oil from contaminating brake disc
Min / Max working temperature -40°C / + 60°C

OPTIONS
Complete piped supports for one or more calipers
Brake Disc
Optional Brake Pad material
Brake pad with wear indicators

Parameter Name	Parameter Value
Type	disc
Operation	hydraulic
Braking force	188 kN
