About

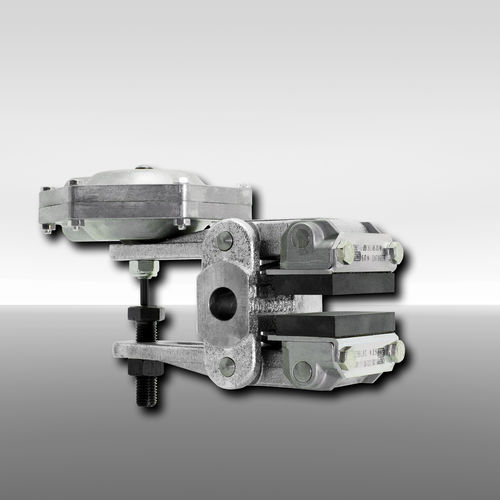

spring activated – pneumatically released
Features - Code
Brake Caliper - D
Mounting to the machine at right angles to the brake disc - H
Frame size 020 - 020
Spring activated - F
Pneumatically released - P
Manual adjustment to accommodate friction block wear - M
Pressure piston are available for selection - 020
030
040
Position of the thruster to the right or left can be determined by turning the brake during installation
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
disc
|
| Operation |
with pneumatic release, spring activated, manual
|
| Torque (Nm) |
97 - 650
|
| Braking force |
1,700 N, 2,300 N, 3,500 N
|
