Highlights
The BXR model is an emergency and holding brake. The thickness is only 66 % of the standard brake and the brake has a compact design. These new dimensions allow for considerable mounting space savings. The major advantage is the low weight of the rotor which may reduce wear of the rotor in the idle state very successfully. Thanks to the lower inertia the brake can be used without affectiong the response capabilities of the servo motor. In addition, the energy-saving design reduces the temperature rise in the coil.

Features of the BXR safety brakes
Ultra slim spring-actuated brake
High reliability
Reduced thickness

Ultraslim design spring-actuated brakes

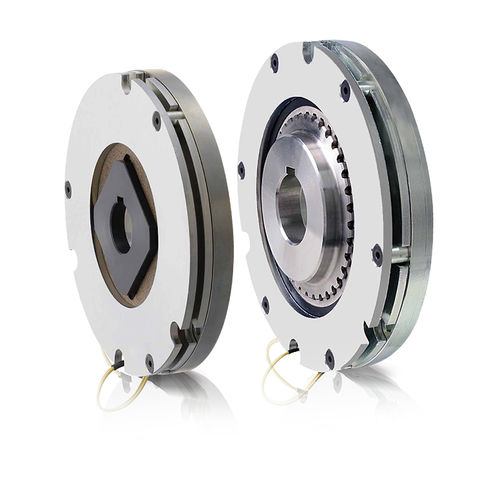

The spring actuated type brake BXR model is an electromagnetic brake actuated by spring force in the non-energized State that is used for rétention and panic braking. It plays the rôle of retaining the halting State of a rotating body or moving body by braking operatioa The shape is an uftra-slim design that is 2/3 that of our conventional models. It is best suited to embedding into a servo motor or robot due to low idle abrasion and low inertia achieved by utilizing the light-weight rotor.

Parameter Name	Parameter Value
Type	disc
Operation	electromagnetic, spring
Other characteristics	safety emergency
Torque (Nm)	5 - 55
