The stator body must be installed so that it is concentric with the output side.

Depending on the size of the brake, the installation must provide for an air gap of between 0.2 and 0.5 mm between the friction lining and the armature disc.

If a SUCO output drive hub is not used, it is important to ensure that there are clearance holes to accommodate the rivet heads, when installing the armature disc. The armature disc is centred by the screws which hold the spring disc to the output component. When the armature disc is installed, it must remain free to move axially against the return spring.

Construction and mode of operation

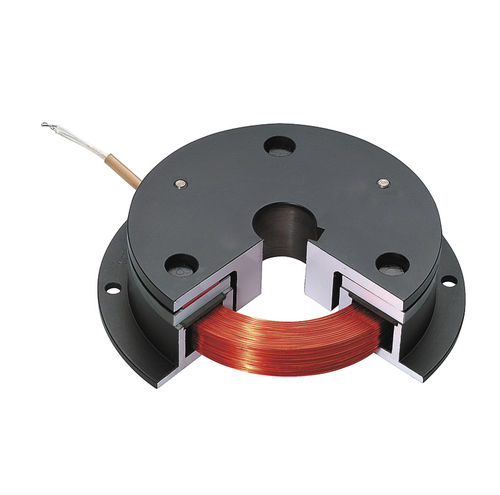

The basic model of electromagnetic brake consists of stator body with cast-in coil and connection cable, and the armature disc to which the return spring is riveted. The friction lining is bonded directly to the stator body.

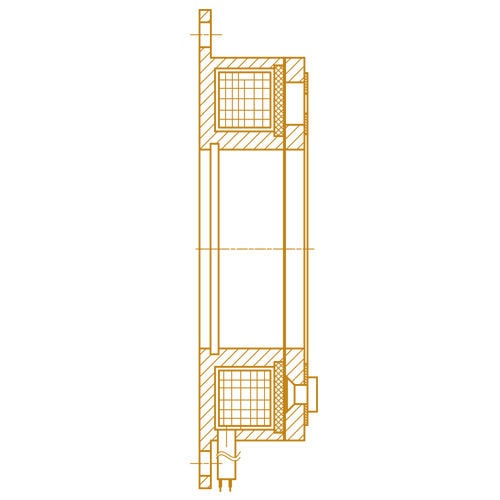

Brake without hub

Basic version without drive hub.

Connection to output side by screws.

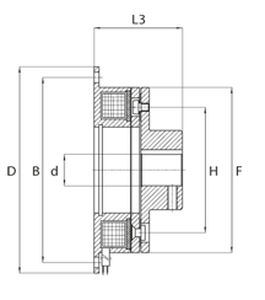

Brake with internal hub

Basic version with axial output drive.

Internal hub.

Brake with external hub

Basic version with axial output drive.

External hub.

Parameter Name	Parameter Value
Type	disc
Operation	electromagnetic, spring
Torque (Nm)	1 - 280
