HIGH LEVEL OF SAFETY

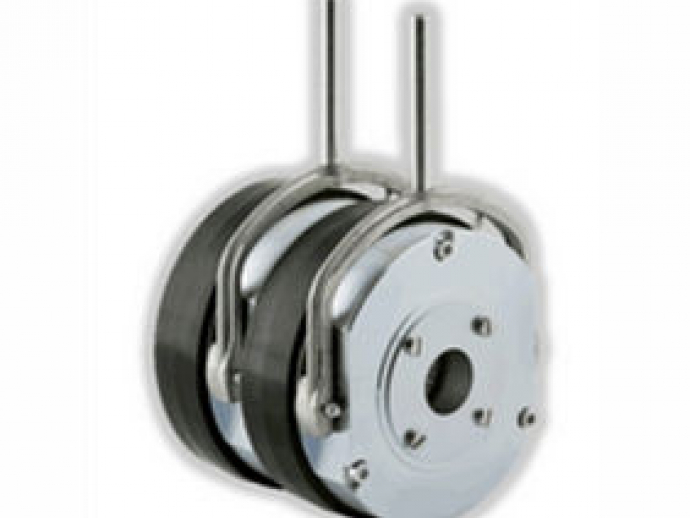

Safety considerations have required designing a braking mechanism with dual safety circuit, also 2H2SP series meet strict safety regulations related to elevator design and installation defined in EN 81-1+A3:2009 standards.
FEATURES
· Braking torque: 2x4 ÷ 2x1600 Nm
· 12 mechanical sizes
· Supply voltage: 24, 104, 180, 207 V DC
· Possible level of protection: IP44 ÷ IP56
· Thermal class F (155°C)
· Spring actuated and electromagnetically released
· Braking torque can be reduced
· Manual release facilities for all sizes
· Air gap and wear monitoring (optional)

Parameter Name	Parameter Value
Type	disc
Operation	electromagnetic, spring, manual release
Other characteristics	safety for crane
Torque (Nm)	600 - 600 4 - 4
