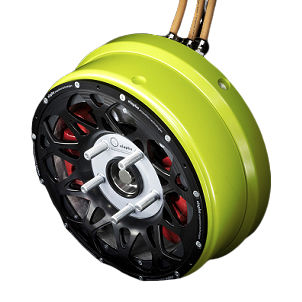

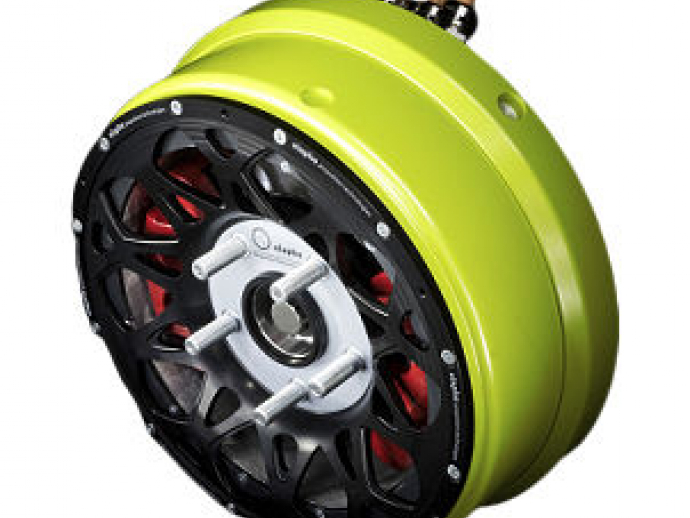

The Elaphe™ M700 motor is an extremely compact high-torque in-wheel motor, designed to fit inside a standard 15- or 16-inch rim. With over 700 Nm of peak torque, 75 kW of peak power and 50 kW of continuous power, this liquid-cooled motor is a perfect fit for a wide range of passenger car classes. It’s compatibility with a standard disk or drum brake enables the use of the motor in both 2iWD and 4iWD configurations.

Coupled with Elaphe’s powertrain electronics and HMI, it offers an ideal platform for the next generation of light-weight, efficient and modular electric vehicle powertrain designs.

Parameter Name	Parameter Value
AC/DC	DC
Type	synchronous
Configuration	modular compact
Cooling mechanism	liquid-cooled
Applications	for electric vehicles
Other characteristics	direct-drive high-torque
Power (W)	0 - 75000
Torque (Nm)	0 - 700
Rotational speed (rpm)	1500 - 1500
