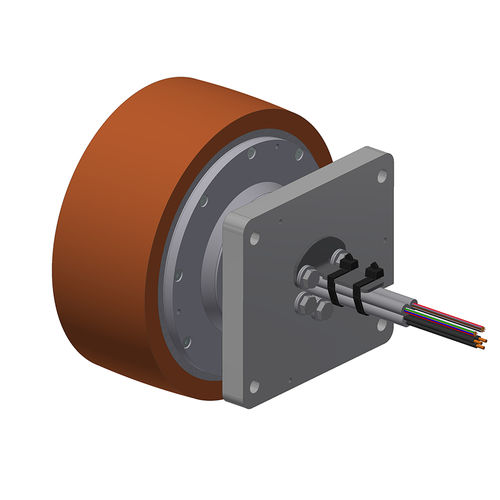

BLDC wheel hub motor i-Wheel 3213.00-2XXX
Direct drive - Benefits in a nutshell
No gearbox – no wear
Much longer service life compared to conventional drive technology with a gear stage
Excellent running properties with barely perceptible noise level
Ultra-compact with extremely high power density
Possible to replace the wheel coating at our premises
Safety first
Rotational control system using diverse redundancy
PL-d safety level achievable with suitable controller
Safe production processes, as there are no risks of contamination from gear oils and greases (no gearbox)
The choice is yours - we implement it
Encoder optional: BiSS, SSI, TTL incremental (various resolutions)
Brake optional: spring-operated brake
Can be combined with various controllers
Customer-specific mechanical integration and system connection
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
direct current
|
| Type |
BLDC
|
| Voltage (V) |
48 - 48
|
| Configuration |
compact
|
| Number of poles |
multipole
|
| Other characteristics |
direct-drive
|
| Power (W) |
165 - 165
|
| Torque (Nm) |
5 - 5
|
| Rotational speed (rpm) |
316 - 316
|
