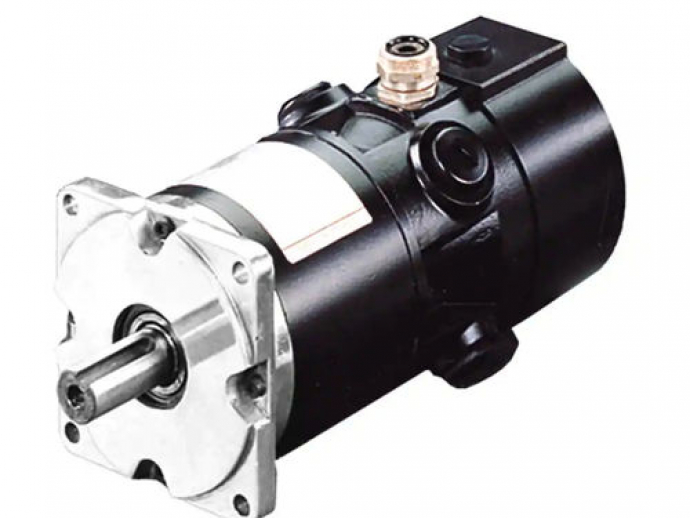

Using high energy magnets, RS-series DC motors combined with RTS drives are particularly suitable for applications which require a very compact solution or a high dynamic level.

Applications:
• - Factory Automation
• - Life Science Diagnostic
• - Textile Machines
• - Radiation Hardend

Technical Overview:
• - Protection Level : IP40 (RS1-RS4) | IP54 (RS5-RS6)
• - Feedback Sensors : Tacho | Encoder | Resolver
• - Marking : CE (except RS6)

Features:
• - Shaft
- - RS1 to RS4: Smooth full shaft
- - RS5 and RS6: Full keyed shaft
• - 2nd Shaft End
- - RS1 to RS3: possibility to mount standard tacho or encoder
- - RS5 and RS6: possibility to mount standard tacho, adaptation for encoder mounting in option
• - Output Cables -1 m without connector
• - Options
- - brake (RS2 to RS6) / - tachometer
- - adaptation 2nd shaft end for encoder mounting (RS5 and RS6)

Advantages:
• - High performance characteristics
• - Excellent low-speed functioning Tacho, encoder resolver
• - High compactness
• - Very long service life
• - Rare earth magnets
• - Tacho, encoder resolver and brake in option

Parameter Name	Parameter Value
AC/DC	direct current
Type	brushed
Voltage (V)	24 - 48
Protection class	IP54 IP40 protection level
Configuration	with coder compact
Number of poles	4-pole
Other characteristics	performance
Torque (Nm)	0.05 - 13
Rotational speed (rpm)	2000 - 3000
