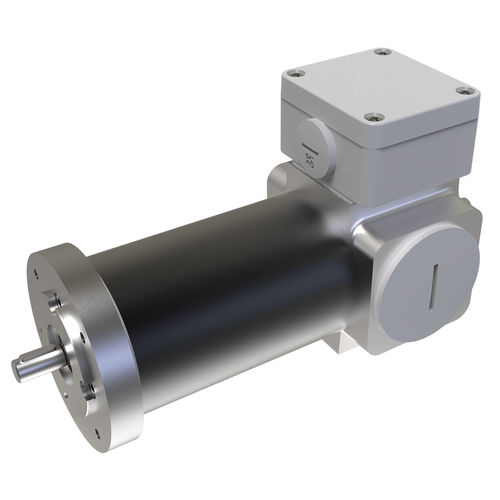

Many DC geared motors are designed to reduce speed and are not suitable for transmitting high torque. tendo®-PM motors reliably transmit any torque possible based on motor power and gear ratio and run very quietly:

generous gear design
high gear meshing
low circumferential backlash
minimal gear tolerances
Fixed bearing with optimized ball bearing

The optimized locating bearing with special grease filling on the A-side of the engine contributes significantly to the good running culture and favorable noise behavior of the engine. Many engine manufacturers do without a locating bearing and adapted grease filling and deliberately accept unnecessary noise, harmful vibrations and premature failure.

Best sealed The biggest shortcoming of most DC motors is their open design. They can no longer be used in critical ambient conditions. tendo®-PM motors also demonstrate their superiority here through:

Protection class IP54
Protection class IP65 (up to IP68 on request)
Very convenient and extremely reliable thanks to unique commutation

tendo®-PM motors have a striking commutation system with a generously dimensioned commutator, a high number of commutator laminations and large-area carbons with a correspondingly high wear volume. This technical "luxury" gives the tendo®-PM advantages that clearly set it apart from the standard:

Carbon service life of 5000 to 6000 hours (2000 to 3000 hours are usual)
smooth running due to low torque ripple and high speed consistency
extremely low noise

Parameter Name	Parameter Value
AC/DC	direct current
Type	synchronous
Voltage (V)	24 - 24
Protection class	IP65 IP68
Configuration	permanent magnet
Other characteristics	with gearbox constant speed low-noise
Power (W)	63 - 500
Intensity (A)	5 - 95
Torque (Nm)	0.22 - 70
Rotational speed (rpm)	2000 - 2000
