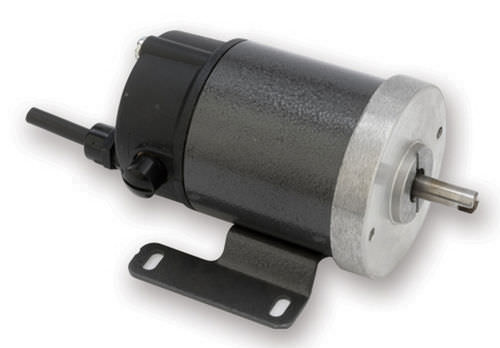

Features

Voltage Range: 12 - 180 VDC
Continuous Output Power: 25 - 75 Watts
Speed Range: 1500 - 4000 RPM
Poles: 2
Brushgear: Cartridge
Size Diameter: 64mm
Size Length: 99 - 139mm
Weight: 1.2Kg
Maximum Shaft Diameter: 8mm
Enclosure Rating: up to IP54
Mounting: Face/Flange/Foot/Gearbox
Insulation: Class F
Connection: Flying Leads

Custom Features

Brake: 12 or 24 VDC to 6Nm, hand release
Mounting: Spigot diameter, Hole diameter, PCD
Output Shaft: Length, Diameter, Keyways, Threads (internal or External)
Leads: Length, Plug or Connector
Paint Finish: Semi Gloss, Gloss, Hammer
Paint Colour: Black, Grey, Blue, White

Parameter Name	Parameter Value
AC/DC	direct current
Type	synchronous
Voltage (V)	80 - 80
Power (W)	25 - 75
