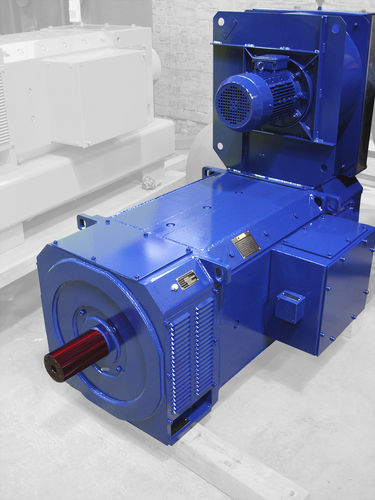

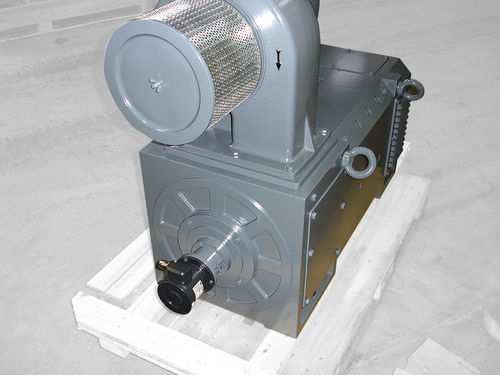

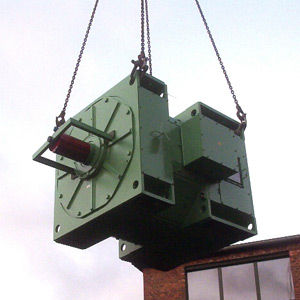

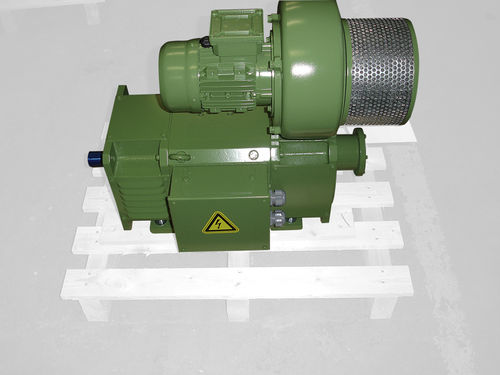

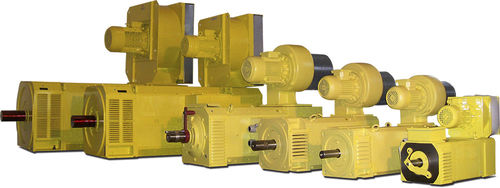

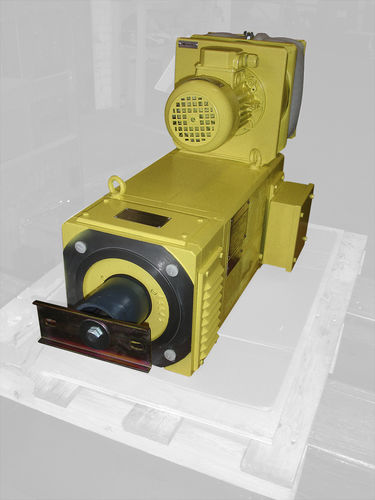

Menzel observes premium quality standards to manufacture MEBGVF 100 to MEBGVF 315 series DC motors in compliance with current EN60034 and IEC 34 requirements.

Armature voltage range:
Up to 1,000 V DC

Torque:
Up to 200 kNm

Shaft height:
Up to 900 mm

Mounting:
IM B3 for horizontal installation
IM V1 for vertical installation
IM B35 for flange and food adaptors

Standard types of cooling systems:
IC 06, IC 17, IC 37, IC 86 W, IC 666

Standard degrees of protection:
IP 55 [IC 37 / IC 86 W / IC 666]
IP 23 [IC 06 / IC 17]
Custom adaptations and special designs can be implemented on request.

Typical applications:
• Extruder
• Foil machines
• Paper and packaging machines
• Machine tools
• Wire drawing machines
• Presses, kneaders and mixers
• Cranes and conveyors
• Rolling mill applications
• Test bench applications etc.

Our choice of excellent materials, strict quality control, and continuous design refinements that reflect the evolving state of the art ensure you can rely on the top quality and durability of our systems.

Parameter Name	Parameter Value
AC/DC	direct current
Type	synchronous
Protection class	IP23
Configuration	large
Number of poles	2-pole 4-pole
Power (W)	0 - 0 10000 - 10000
Torque (Nm)	0 - 0 30 - 30
Rotational speed (rpm)	150 - 5000
