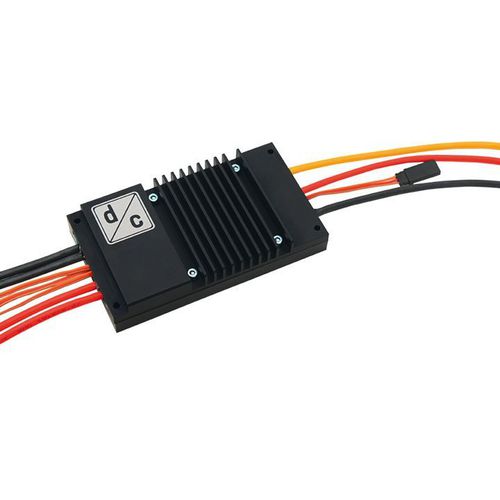

The innovative motor regulation in the Deutronic® D-SINUS Series is based on state of the art, sinus-commutated speed controller technology. Compared with the competition the extremely complex control algorithm of the D-SINUS controller enables operation without the need for additional, elaborate sensors. Therefore a higher degree of synchronisation can be achieved by field-oriented-controlled phase currents. Due to the sinusoidal current characteristic the efficiency is increased and the torque generated is constant in contrast to block commutation.

Sensorless, sinusoidal commutated motor controller for a soft, steady and quiet running motor.
No torque ripple, high level synchronisation and high starting torque.
Up to 95% Efficiency (Controller + Motor)
Low package space

Parameter Name	Parameter Value
AC/DC	direct current
Motor type	EC
Other characteristics	with speed control torque control
Input voltage	Max.: 52 VMin.: 16 V
Current (A)	120 - 120
