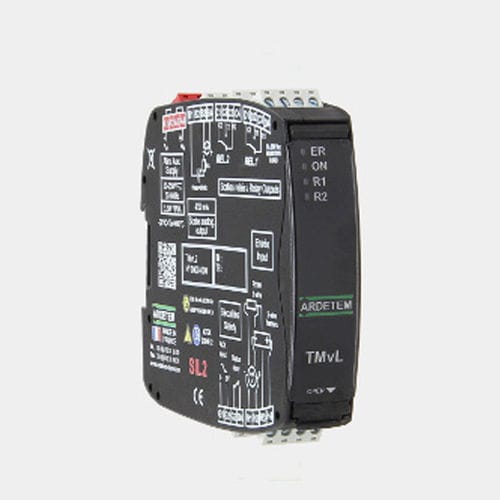

The TMvL2 is an analog signal converter equipped with SIL2 safety analog and
relay outputs.

Mounting in a cabinet: latching on a symmetrical DIN rail.

TECHNICAL SPECIFICATIONS

ANALOG CONVERTER WITH SAFETY RELAY SIL 2

1 DC input: mA, or V, or 3-wire Pt100
Supply for 2-wire transmitter
1 analog output 4-20mA active or passive
Option 2 relay outputs with positive safety (break/make contact)
SIL 2 safety output
1 logic input for initialisation of the alarms and the SIL failure
1 relay output for the SIL status (N.C. contact)
Power supply: 20-250 Vac and 20-250 Vdc

Parameter Name	Parameter Value
Format	DIN rail
Options	analog
