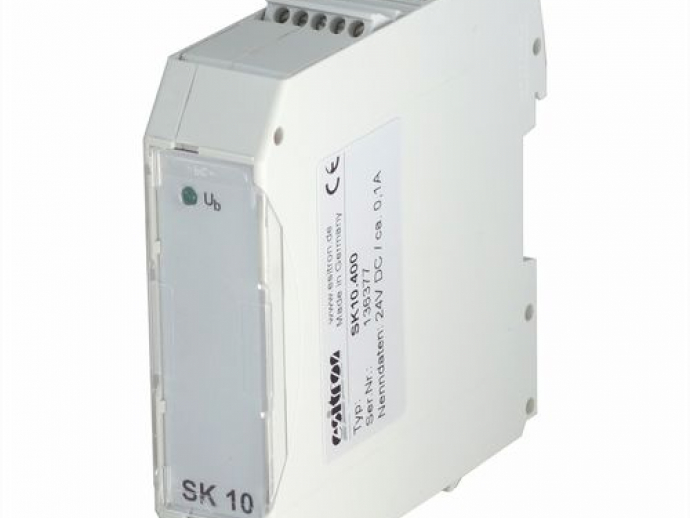

Esitron's SK10 Series is part of the company's product line of signal converters. Models of the series are commonly utilized for applications that involve encoder signal conversion and level conditioning. These devices are also used for galvanic separation from input and output signals. They feature mounting capabilities on standard TS 35 rails.

Rotation transducer signal conversion delivers signals in clock and directional transmissions, and clock pre and clock-back transmissions. Rotation transducer signal level transformation is capable of changing 5 V (TTL) to 12-30 V, and 12-30 V to 5 V (TTL).

Conversion and level conditioning of encoder signals
- Conversion of the rotation transducer signals alternatively:
- A, B - signals in clock and direction signal
- A, B - signals in clock pre and clock back signal
- Level transformation of the rotation transducer signals
- from 5 V (TTL) to 12 - 30 V
- from 12 - 30 V to 5 V (TTL)
- Galvanic separation from in and output signals
- mounting on standardized TS 35 rail
- Option: Encoder supply 5 V, 80 mA

Parameter Name	Parameter Value
Format	DIN rail
Options	opto-isolated
