CONDITIONERS - AMPLIFIERS FOR STRAIN-GAUGE-BASED TRANSDUCERS

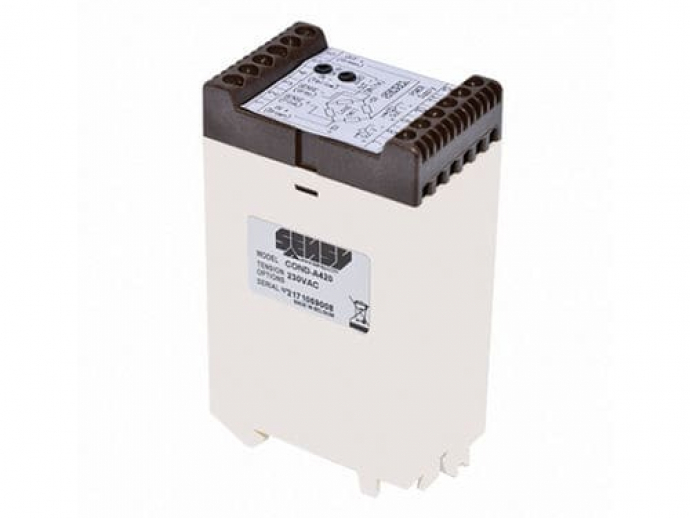

The COND-A420 conditioners - amplifiers provide standardised signals in current and voltage from every load cell, force transducer and torque sensor based on strain-gauge technology.

o Input range: Wheatstone bridge (4 or 6 wires connection (sense))
o Output: 4(0)...20 mA and 0...10 V (simultaneously)
o Sensor excitation: 10 V (120 mA max.) available for up to 4 x 350 ohms. Load cells connected in parallel
o DIN rail mounting

Parameter Name	Parameter Value
Format	DIN rail
Options	amplifier
Applications	for strain gauges load cell
