Nordson EFD's ValveMate™ dispense valve controllers put push-button adjustment of valve open time where it needs to be — at the valve. Maximize automated assembly machine efficiency and convenience.

ValveMate controllers provide the primary control of deposit size. They are designed to bring fluid dispensing control close to the dispense valve and provide numerous user-friendly features that simplify valve setup and operation.

With control of the dispensing cycle close to the valve, there is less fluctuation therefore more consistent deposits.

EFD dispense valve controllers are simple to setup and operate, and easy to interface with PLCs and other equipment.

• Maximum process control
• “On the fly” deposit adjustment
• Easily interfaced with a PLC
• Up to four programmable actuation channels
• Fast-response pneumatic solenoids

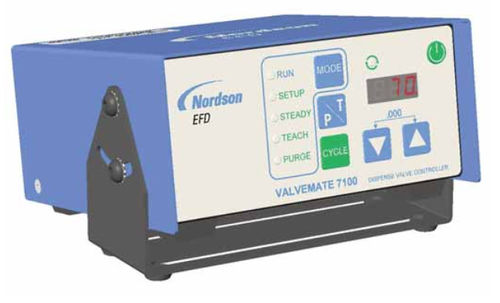

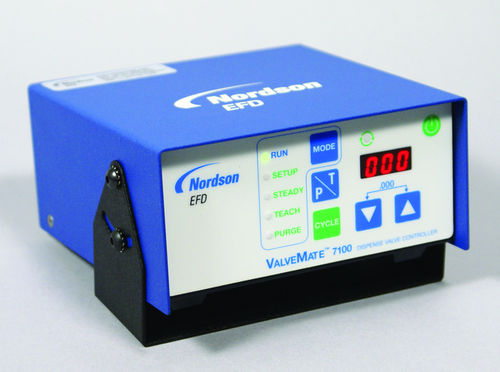

ValveMate 7100
Single-valve controller designed for semi-automated or fully automated dispensing applications, and features an internal control air solenoid.

ValveMate 8000
Multi-valve controller capable of operating up to four dispense valves independently or simultaneously, and features external control air solenoids.

ValveMate 9000
Dual-valve controller supports two independent channels that can drive remote high-speed solenoid valves and incorporates a heating system with spike-and-hold functionality.

Parameter Name	Parameter Value
Options	digital dosing
