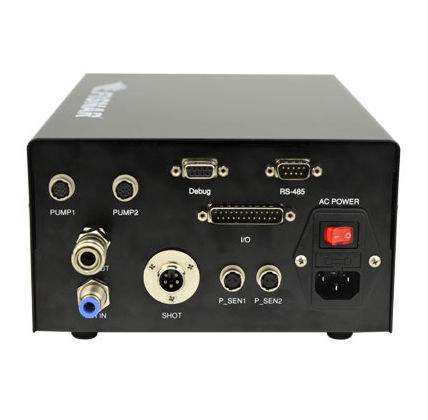

An advanced valve controller suitable for use with all Fisnar PC I-Series and V-series progressive cavity valves.

The Graphic User Interface (GUI) provides simple touch-screen programming and operation for both one and two component dispense applications.

The 4” HMI display allows all dispense parameters to be independently programmed on one single screen. An integral pressure regulator and digital pressure gauge ensure easy system installation.

• Manual and timed dispense modes
• Digital pressure output display
• Operator lockout
• Adjustable forward and reverse speed
• Controllable suck-back delay dwell time
• User friendly touch-screen interface (GUI)
• Cleaning routine for valve maintenance
• Auto-purge (anti-gel function)
• Remote program select function

• Time Range : 0.01 - 500s
• Programs : 200 memory slots
• Voltage : 100 - 240 VAC, 50/60 Hz
• I/O : 7 inputs / 7 outputs / RS485
• Air Input : 70 - 100 psi
• Air Output : 1 - 100 psi
• Dimensions (WxDxH) : 203.2 x 279.4 x 114.3 mm (8 x 11 x 4.5")
• Weight : 1,700 g (3.75 lb)
• Standards : CE Approved, RoHS Compliant

Parameter Name	Parameter Value
Options	digital
