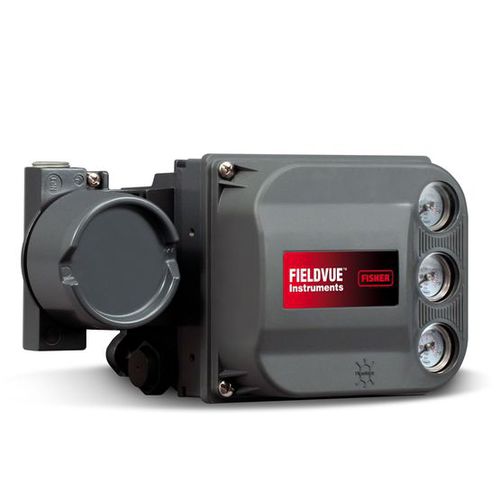

The Fisher FIELDVUE DVC6200 instrument allows for your operation to run closer to setpoint, improving product quality with more accurate control. Using FIELDVUE Performance Diagnostics, valve operation is monitored online to evaluate performance and reliability.

Specifications
Area ClassificationExplosion Proof, Intrinsically Safe, FISCO, Type N, Flame Proof, Non-incendive for FM
CertificationsCSA, FM, ATEX, IECEx, CUTR, Lloyd's Register, Peso, KGS, INMETRO, NEPSI, TIIS, Natural Gas Certified, Single Seal Device
Communication Protocol4-20 mA HART
Data InterfaceWired
DiagnosticsYes
Input SignalElectric
Max Outlet Pressure145 psig
Mounting TypeIntegral Mounted
Operating TemperatureStandard Temperature, High Temperature
Position ControlThrottling Control, On/Off
Power SourceLocal
Process ControlFlow, Pressure, Temperature, Level

Features
The high performance, linkage-less feedback system eliminates physical contact, which eliminates wearing on parts.
The fully encapsulated electronics resist the effects of vibration, temperature, and corrosive atmospheres.
Provides quick responsiveness to large step changes and precise control for small setpoint changes.
The DVC6200 is a HART communicating device, so information can be accessed anywhere along the loop. This flexibility can reduce exposure to hazardous environments and make it easier to evaluate valves in hard to reach locations.

Parameter Name	Parameter Value
Options	digital
