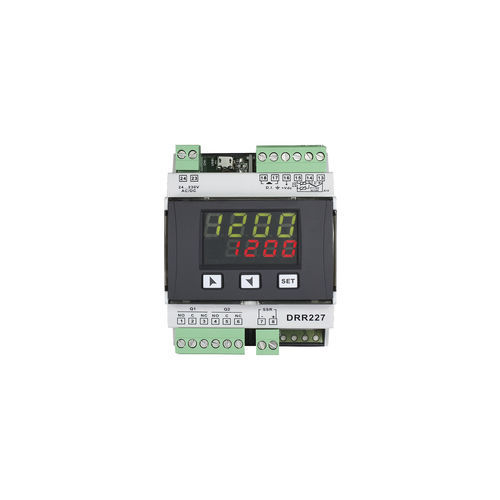

DIN rail-mounted thermoregulator 43880 Single process setpoint, dual alarm threshold.

The analogue inputcan be configured for different types of temperature sensors RTD/Thermocouples and processes, the relay outputs and SSRs can be used as control and alarm. An input is available for a TA current transformer with a maximum current threshold. Useful extended range power supply from 24 to 230V AC/DC with galvanic isolation from the network.

The software's functions include the SSR Burst-firing and Phase Angle control modes for inductive loads, resistive loads and infrared bulbs (monophase and triphase systems).

The digital input allows the external activation of various functions, including selection of automatic/manual mode.

Parameter Name	Parameter Value
Display	digital
Type	PID 1-loop
Protection level	IP20 IP65
Use	process
Other characteristics	automatic DIN rail
Maximum temperature (°C)	0 - 45
