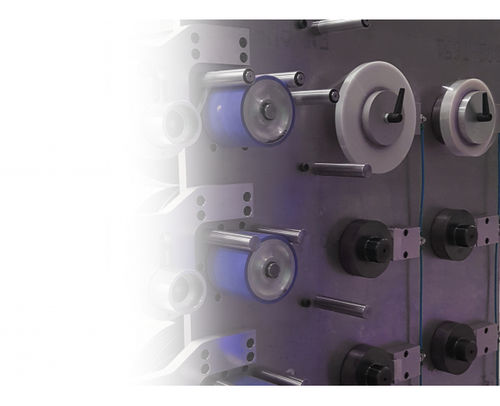

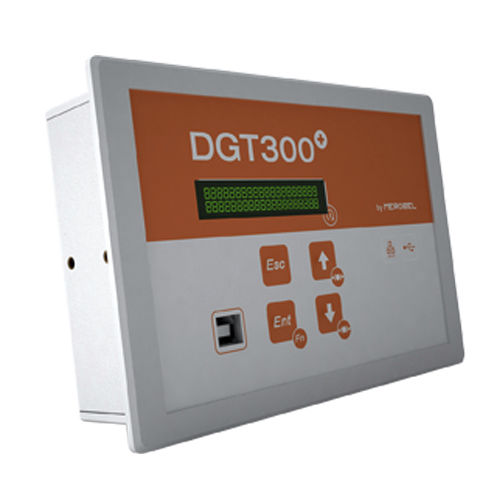

DGT 300+ is the most attractive turn-key solution on the market for closed-loop and / or open loop applications. Used in tension control solutions for winding, unwinding, and intermediate tension control. The DGT 300+ controller is also compatible with demanding torque control solution for test benches.

Fully configurable from the HMI or through a dedicated PC software and even by TCP / IP communication with machine PLC, DGT 300+ offers all the specialized functions required by tension control .

DGT 300 + accepts all types of direct inputs from force (load cells), diameter (laser, ultrasonic sensors), or dancer position (potentiometer).

With DGT300+ controller, Torque and Tension Control has never been so easy to manage

Key features

Advanced skills of regulation
Built-in precision amplifier for 1 or 2 sensors
Compatible with any load cell technologies
P.I.D regulation algorithm
Open Loop + Close Loop modes included
Emergency stop torque proportional to the setpoint
Progressive starting (Programmable ramp function)
Power supply included up to 1,5Amp

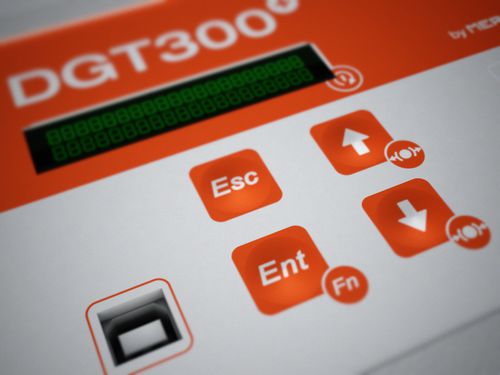

HMI design with operator 1 expert menu
Very easy set-up with the PC software (Windows)
Multiple Language choices
Communication with amin PLC or HMI with MODBUS TCP Ethernet port

Parameter Name	Parameter Value
Type	clutch and brake digital web ultrasonic
