The self-improvement of MCT devices allows an accurate temperature control. Temperature set and actual value, heat current set and actual value as well as actuating variable, parameters and fault reports are digital indicated. The devices have a semiconductor relay and heat current monitoring related to heat element failure and interruption. Collective alarm display control temperature and heat current. Start-up circuitry involves set level limits, start-up temperature and holding time. To avoid production interruption actuating variable can be adapted. The connection of standard temperature sensor types (L, J, K and PT100) is possible.
casing:

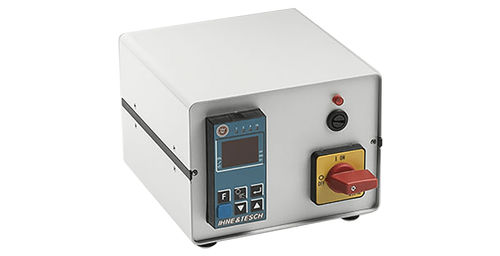

- propac table casing: 270 x 190 x 206 mm painted stone-grey
- built-in controller with pluggable device slot
mains connection:
— 230V / 16A / 50 Hz
- fuse protection 16A / FF – 3,500W power exit
- fuse failure monitoring (glow lamp)
- 3 m leads with insulated plug
- load circuit via solid-state-relay (non-wearing)
temperature controller: KS 50-1
- temperature sensor types: L, J, K and PT100
- control behaviour: two-point D/PID
- digital set display: red 4-digit LED-display
- digital actual display: red 4-digit LED-display
- switching status display of exits
- heat current monitoring (adjustable value limit 0-16A, digital display of set and actual value)
- self-improvement of control parameters

Parameter Name	Parameter Value
Display	digital
Type	thermoelectric
Other characteristics	economical
