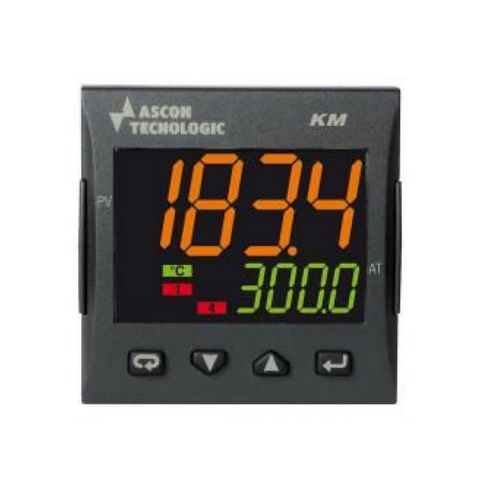

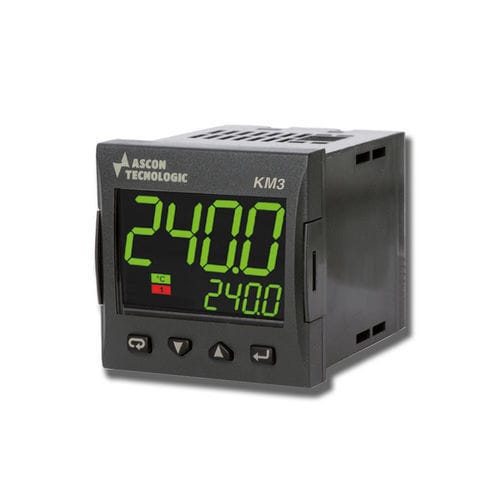

Controller, programmer with independent timer

KUBE series: the evolution that has something more! Pocket size, energy saving and advanced functions:

-evoGreen – for Energy Saving
-evoTune – for “trouble-free” adjustment
-evoTools – code-based configuration for fast commissioning and programming key for instant parameterization
-8 segment programmer function with segment recovery
-User calibration for sensor position compensation
-Servomotor function
-Independent timer function with 5 operating modes
-Hour meter/working days with 2 functions and programmable alarm
-Calculation of power and energy consumption (Wattmeter)
-Freely customizable parameter sequence

FUNCTION -
Programmer, Transmitter, Controller

DIMENSIONS -
48 x 48 mm

DISPLAY -
2 display with 4 digit 3 dynamic colours

POWER SUPPLY -
24 Vac/Vdc, 100… 240 Vac

INPUTS -
0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, Pt1000, PTC-NTC, Thermocouple, Universal

NUMBER OF OUTPUTS -
1, 2, 3, 4

OUTPUTS -
0/2… 10 V, 0/4… 20 mA, Relay and/or SSR control, Servomotor

DIGITAL INPUTS -
1, 2

INDEPENDENT TIMER -
Yes

NUMBER OF PROGRAMS / SEGMENTS -
1 program with 8 segments

RETRANSMISSION OUTPUT -
0/2… 10 V, 0/4… 20 mA

INTERFACE -
RS 485 Modbus Slave, TTL Modbus

SPECIAL FUNCTIONS -
Digital retransmission, Hours/Days worked, ON time, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter

CONTROL -
ON/OFF and PID single or double action, Servomotor

EXTRACTABILITY -
Not extractable, With fix terminal block, With removable terminal block

CERTIFICATIONS -
CE, UL

Parameter Name	Parameter Value
Display	digital double LED display
Type	PID programmable
Protection level	UL IP65
Other characteristics	configurable RS-485 with independent timer advanced
Maximum temperature (°C)	-20 - 70
