- Electronic PID temperature controller with auto-tuning function
- Parameters can be set at the sensor input for all common temperatur sensors
- Suitable for controlling electrically heated M&C components with temperature sensors
- If the controller is ordered in combination with an M&C component, the parameters will be set and the controller will be pre-programmed especially for this component
- Built-in solid state relay with a switching capacity of 15 A
- With LED display
- In a wall-mount enclosure made of sheet steel with cooling block
- Power: 230 V

PID self-optimizing temperature controller in a steel-sheet enclosure for different sensors e.g. for SP2000-H320/S.1, SP2000-H320/DIL, SP2000-H320/C, SP2000/PT100, SP2000/FeCuNi, SP2000/SP30 ... or SP2000/SP35…

The temperature controller type 70304G is used for all heated components where the standard thermostat can be replaced by an electronic controller or where controlling by a thermostat is not possible. Moreover, it can be used for heated sample lines if a temperature alarm is required.

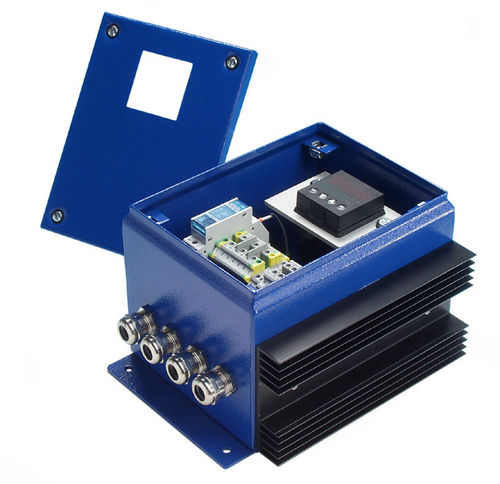

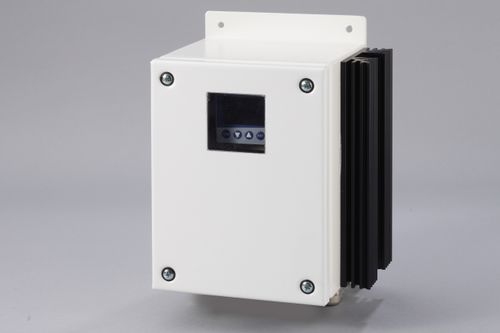

Electronic PID temp. controller type 70304G with autotuning and LED display in a wall‑mount housing IP65, made of painted sheet steel with inspection window in the cover, standard temp. sensor: Pt100, Fe‑CuNi type J

Parameter Name	Parameter Value
Display	digital
Type	PID
Maximum temperature (°C)	-30 - 70
