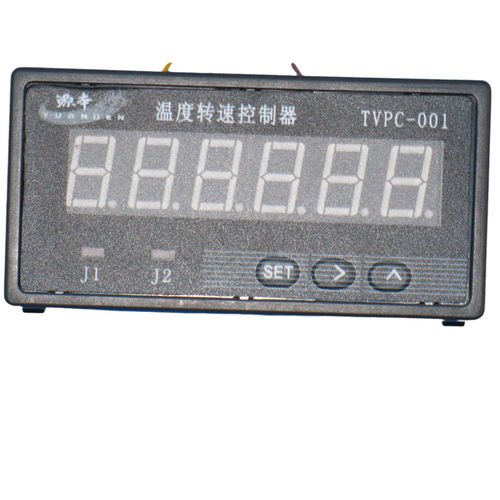

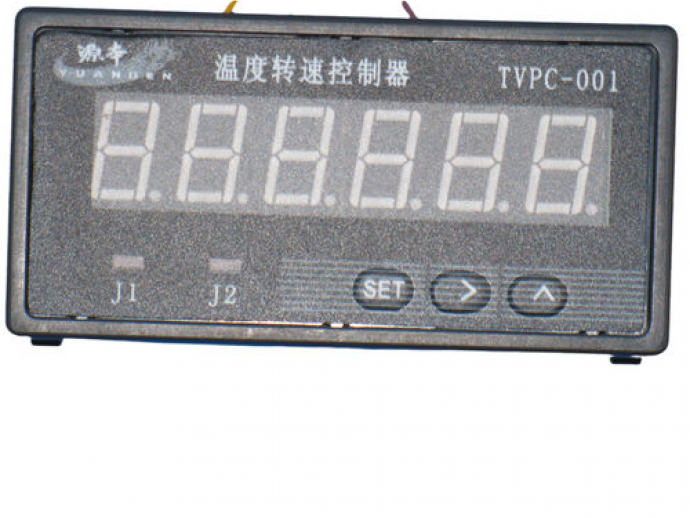

1. Description

TVPC temperature speed controller is consist of two main assemble ① TVP temperature probe, ② TVPS magnetic sensor, the TVP temperature probe is mounted on fluid coupling.

TVPC temperature speed controller can be in place of thermal trip switch, and offered as a standard accessory on fluid coupling. it will provide protection against overheating, if the coupling is overload, overheating, low speed (speed is lower than pre-set speed value), are used in place of standard fusible fill plugs, and thermal trip switch.

If an overload jam, stall or fluid leak occurs, the fluid coupling slip will increase, Continuous high slip will cause the fluid temperature to rise, at the designated temperature speed probe will change the magnetic specification, TVPS magnetic sensor will test overheating, sound an alarm , light an alarm or cut out the drive motor.

During normal operation, the TVP temperature speed probe is magnetic material, TVPS magnetic sensor can monitor the rotate speed of fluid coupling. When overload or other situation the fluid temperature is overheat (excessive the pre-setting Value Such as 125℃), the magnetic sensor will give alarm signal , cutout the drive motor.

Also the magnetic sensor will give alarm signal when the rotate speed if fluid coupling is down the pre-setting speed value.

A TVPC temperature speed controller in the motor starter control circuit of controlled torque coupling is recommended for protection of connected equipment and coupling where damaging thermal buildup could develop.

TVPC temperature speed controller is adjustable at the control box.

Parameter Name	Parameter Value
Display	digital
Protection level	standard IP67
Maximum temperature (°C)	-25 - 70
