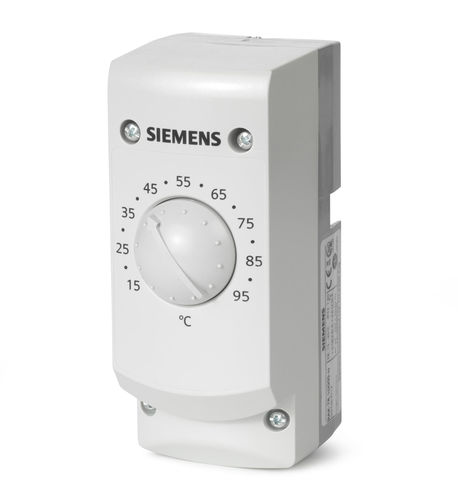

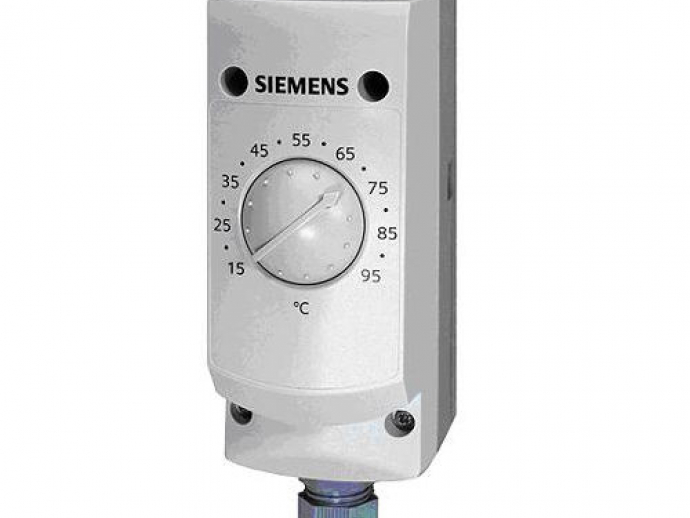

Temperature controller 15...95 °C, protection pocket 100 mm, capillary 700 mm, clamp on band

External scale, 1 changeover contact, immersion and strap-on thermostat in one.

Technical Specifications
Immersion length
100 mm
Protection pocket
PN 10, 100 mm, G ½" LW7
Sensing element
Liquid expansion sensor
Capillary length
700 mm
Switching differential
6 K
Digital outputs
1-pin , Potential-free , Changeover contact
Dimensions (W x H x D)
55 x 156 x 72 mm

Parameter Name	Parameter Value
Display	digital without display
Type	thermoelectric
Protection level	IP43 immersion
Maximum temperature (°C)	15 - 95
