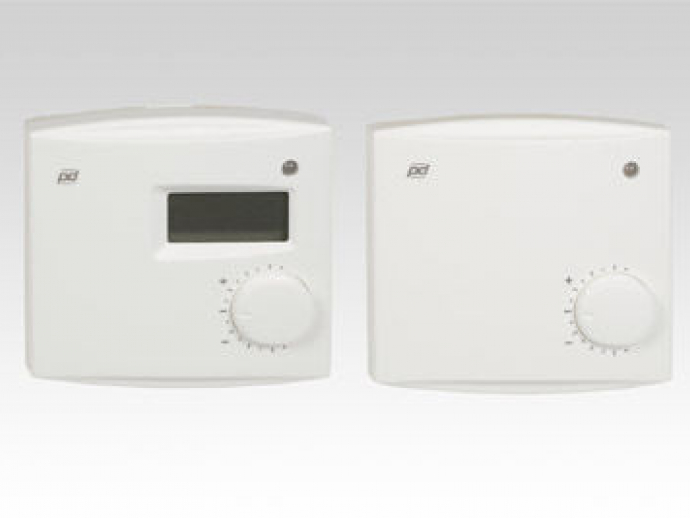

The HLS 16 Series is particularly intended for individual room floor for warming or cooling applications. It is provided with a RS-485 channel utilized for Modbus communication. Both warming and cooling will be controlled by utilizing the same warm actuator and by changing the direction of capacity with the outside contact associated with the terminal Z1. The room temperature will be identified by an inner NTC10 sensor. The mid purpose of the set point (industrial facility setting = 21 °c) might be changed by setting the potentiometer to the sought position and by opening and closing jumper S3. The relative band of 1°c (S2=off) or 2°c (S2=on) will be chosen by the jumper.

Parameter Name	Parameter Value
Display	digital
Type	single-channel
Use	floor heating/cooling
Maximum temperature (°C)	0 - 50
