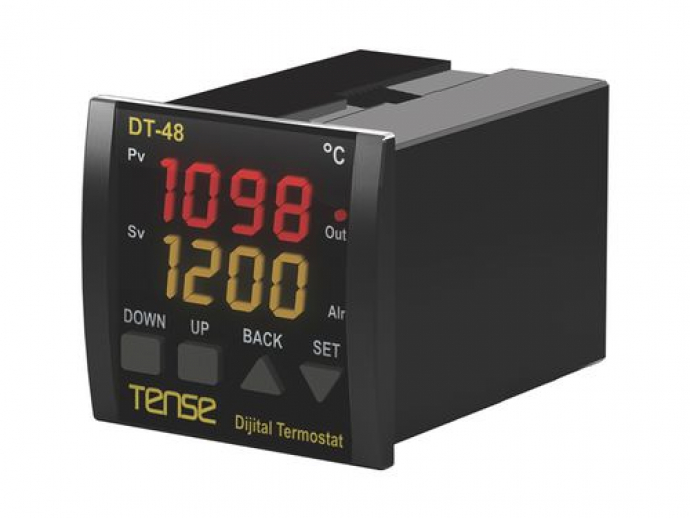

Digital temperature control relays are designed to keep the temperature of the environments requiring temperature dependent control at the set value.

Microprocessor Based, PID Temperature Controller
Auto-tuning for PID Parameters
Sensor Type: T/C (J,K,T,S,R), Pt100
Selectable Control Type: P, PI, PD, PID or ON-OFF
Automatic “Overshoot” Elimination in PID Mode
Anti-windup
Upper and Lower Limit for SET and ALARM Settings
Selectable Relative, Absolute or Band Alarm
ON-delay for OUT in Cooling Mode
Displays SET and PROCESS Values
Cold-junction Compensation for T/C
Line Compensation for Pt100
Excellent Linearity with °C/mV and °C/W Look-up Tables
Input “Offset” Feature
Password Protection
High Accuracy
EEPROM Memory to Store Settings
Optional SSR Output
Easy Connection with Plug-in Connectors

Parameter Name	Parameter Value
Display	digital
Type	PID
Use	cooling heating
Other characteristics	panel-mount auto-tuning
Maximum temperature (°C)	-100 - 1750
