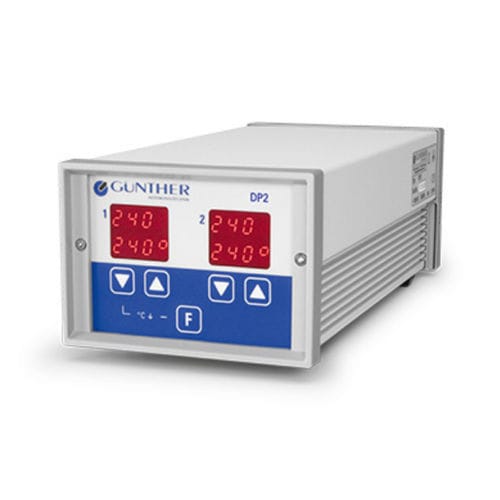

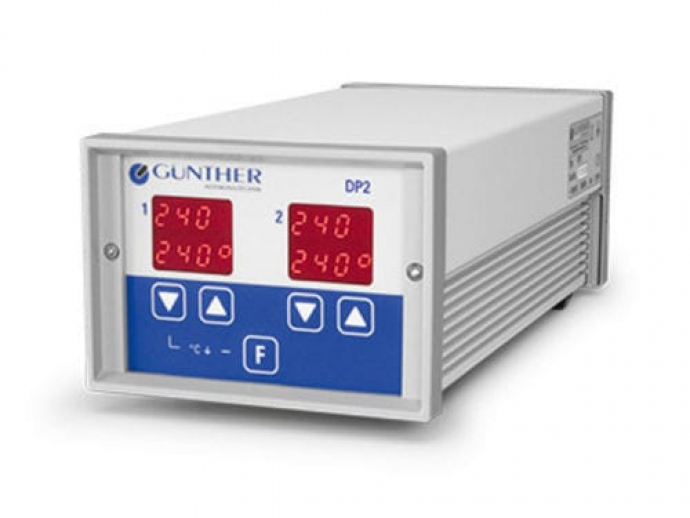

Compact controllers for economical and convenient control of small hot runner systems
Control circuits
1
Operating voltage
230 VAC
Volt Alternating Current - Wechselstrom
Dimensions (W × H × D)
125 × 95 × 290 mm
Weight
2.1 kg
Control circuits
2
Operating voltage
230 VAC
Volt Alternating Current - Wechselstrom
Dimensions (W × H × D)
125 × 95 × 290 mm
Weight
2.1 kg
Easy operation using separate displays and input buttons
Total 1-phase connected load: 230 VAC*, 16 A
Fuzzy PID control behavior
Soft-start function for gentle start-up
Actual temperature and level display for each zone
Pulse group control
Temperature limitation during production breaks
Change of operating mode (control)
Power limitation during start-up
Operating hours meter
Continuous fault monitoring
The cables between the control unit and the hot runner system are not included in the scope of supply.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Display |
digital
|
| Type |
PID
|
| Use |
hot runner
|
| Other characteristics |
compact
|
