Converts process signals for a pulsating output, which can be applied on the digital inputs of a PLC.
Frequency output 0,05 - 5kHz or 0,5 - 50kHz.

DESCRIPTION

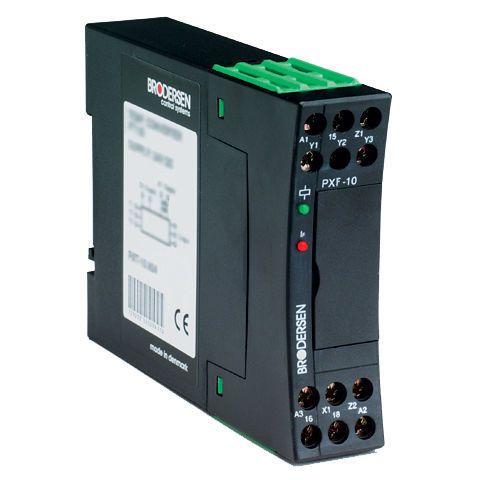

Signal converter for the conversion of an analogue process signal to
a pulsating (50% duty cycle) transistor output. A typical application
would be to convert an analogue signal from a probe to a pulsating
output for input at a digital input of a PLC. Input, output and operating
voltage are internally galvanically isolated (3,75kV).
Input is selected via switches and output is selected via choice of
terminals. See connecting diagram.

Features
• Input 0 - 5V/0 - 10V/-10-+10VDC/0 - 20/4 - 20mA in one version.
• 2 standard output versions;
• Output 0-50Hz/0-5kHz/0-10kHz - selected via terminals.
• Output 0-40Hz/0-4kHz/0-8kHz - selected via terminals.
• Output offset and gain adjustable ±5%.
• LED indication of input less that 5% / indication on probe failure.
• Operating voltage 24VDC, 24VAC, 115VAC, 230VAC.

Parameter Name	Parameter Value
Signal type	digital
Other characteristics	DIN rail
