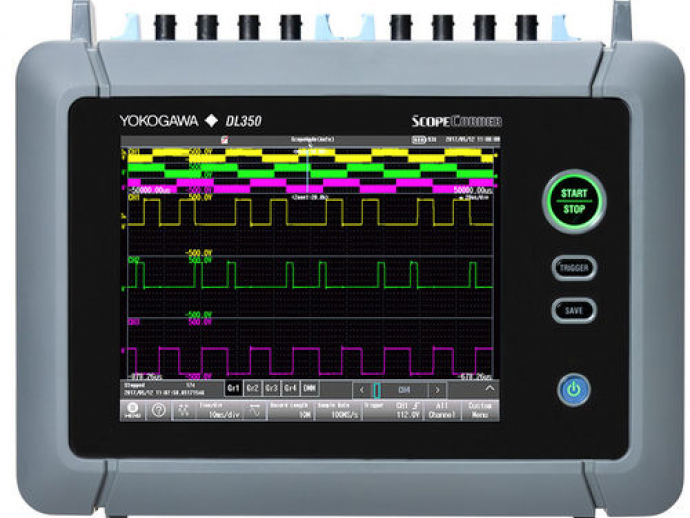

The DL350 Portable ScopeCorder combines all the measurement and recording capabilities you need when you are away from your office or lab - all in one compact instrument.

Featuring a resistive touch screen, the DL350 provides the flexibility you need when you need it. Whether you are recording high-speed transients or long-term signals, using “quick and simple” setup or advanced features, the DL350 makes complete measurements completely portable.

Transient recording and complete data measurement in one compact solution

As the portable instrument in Yokogawa’s ScopeCorder family, the DL350 offers:
Portability

A4-sized compact chassis
Battery power for 3.5 hours
Resistive touch screen
Memory recorder mode for easy data logging setup

Mobility

GPS recording: longitude, latitude, velocity, and more
Designed for vehicle testing
Records to SD cards

Modularity

Compatible with 19 different input modules
Up to 8 channels analog inputs
Up to 100 MS/s sampling rate
Up to 16-bit analog resolution

Parameter Name	Parameter Value
Type	digital analog
Measured physical value	transient
Other characteristics	portable high-speed battery-powered with touchscreen
