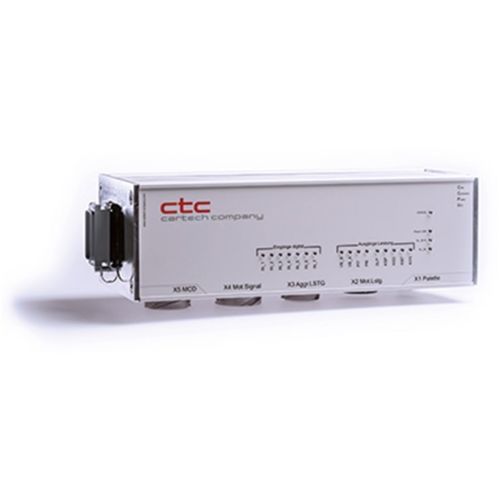

The CAN Controlled Power Unit acts as a power, logic and measurement interface between control and power electronics in test bench structures (especially engine test benches).
Basic features:

Separation of control and power electronics
CAN bus interfaces
The use of ProFETs in the power section enables low losses and a long service life.

Extensive connection options

Operating voltage between 5V and 30V.
5 power outputs up to 70A
2 half bridges 15A, PWM-capable up to 1kHz
1 full bridge 7.5A
14 digital inputs, 4 digital outputs
4 analog inputs, 4 analog outputs
5 separate CAN nodes with switchable terminating resistors
Powerful CPU

Enables complex sequence controls, simulations and gateway functions, which we can implement upon customer request.

Parameter Name	Parameter Value
Type	digital analog
