Factory configured modular system
5 free slots for power supply modules
3U x 19″ x 35 cm crate size
Floating channels
Local and Remote Control
Remote control via Ethernet, USB, CANBUS and RS232
Max output power: 2.5kW @ 220Vac, 1.5kW @ 115Vac
Up to 8 independent channels
Low noise
Avalaible Modules:
2÷7V 550W (110A@5V) 1 slot
2÷7V 1100W (220A@5V) 2 slot
±7÷16V 550W (23A@±12V) 1 slot
±7÷16V 1100W (46A@±12V) 2 slot
±20÷28V 550W (11A@±24V) 1 slot
±20÷28V 1100W (22A @±24V) 2 slot
10 mV Voltage Set/Monitor resolution
100/200 mA Current Set/Monitor resolution (2÷7V)
20/40mA Current Set/Monitor resolution (±7÷16V/±20÷28V)
Individual channel ON/OFF and TRIP
Sense wires for the voltage drop recovery
4 Analog Input, 4 Digital Input, 4 Digital Output
Fans embedded for vertical cooling

Overview

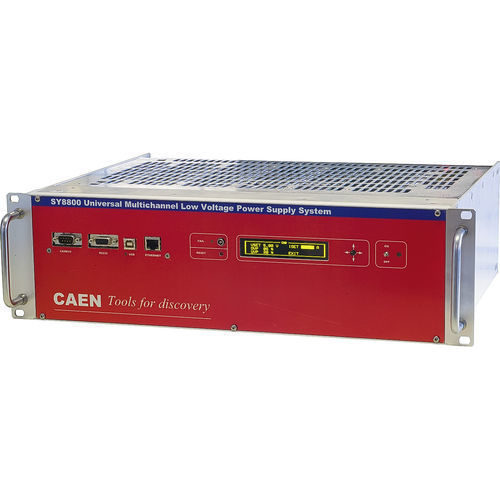

The Mod. SY8800 is a high density floating low voltage power supply system, designed to power low noise electronics with medium and high currents.
Six modules have been developed so far:

2÷7V 550W (typ. 110A@5V)
2÷7V 1100W (typ. 220A@5V)
±7÷16V 550W (typ. 23A @±12V)
±7÷16V 1100W (typ. 46A @±12V)
±20÷28V 550W (typ. 11A@± 24V)
±20÷28V 1100W (typ. 22A@± 24V)

The system is factory-configured. The system is provided with Remote Sensing Lines to compensate for the voltage drop over the connection cables.

Safety features include:

Overvoltage and Undervoltage protection when the output voltage differs from the programmed value

Programmable maximum channel output voltage limit (VOVP): the channel is tripped off when its output voltage exceeds VOVP

Parameter Name	Parameter Value
Type	digital analog
