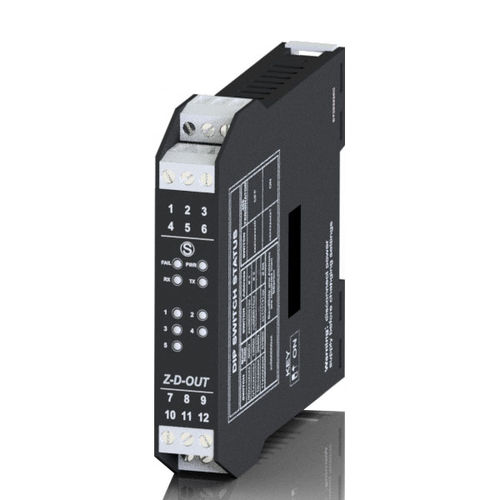

The Z-D-OUT (hw.1with micro USB port on the front panel) is used to drive N.5 SPST relays from all of the control systems which are able to communicate with the transmission protocol MODBUS RTU through the RS485 serial interface. The instrument has N.5 SPST relays, capacity resistive loading of 5 A 250Vac, inductive loading of 2 A. The module is ModBUS Slave and can be coupled with any ModBUS Master device. 3-way galvanic isolation among Power supply // output // RS485 circuits assures the integrity of your data.

Power Supply: - 10..40 Vdc; 19..28 Vac (50-60 Hz)
Outputs: - 5-CH SPST relay, settings NO/NC
Safe state: - Settable at start up or in case of communication fault, programmable delay fron 50 to 250 ms
Dimensions: - 17,5 x 100 x 112 [mm]
Mounting: - 35 mm symmetrical DIN (46277) rail

Parameter Name	Parameter Value
Signal type	digital
Bus	Modbus RTU, USB, RS485, Modbus
Number of inputs/outputs	5-I
Mounting	DIN rail
Other characteristics	programmable slave
