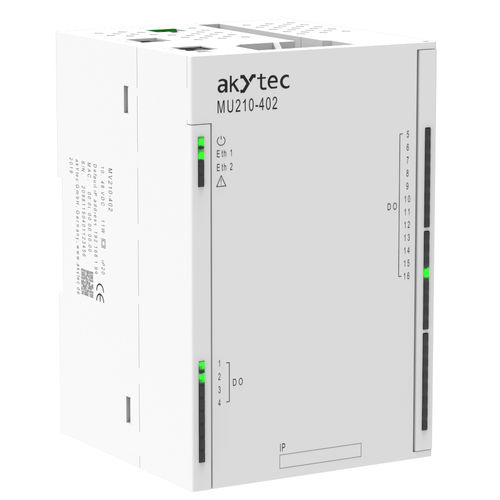

The digital output module MU210 has 8 or 16 digital outputs (relay or transistor outputs). The max. current load is 5 A at 250 V AC or 3A at 24 V DC. To communicate the input data to a controller, an Ethernet port and Modbus TCP are at your disposal. The module requires 24V DC input power and can operate in the temperature range between -40 and +55 °C.

Pulse-width modulation (PWM)
2 bypass-capable Ethernet ports
Support for daisy-chain wiring
Support for Modbus TCP, MQTT, SNMP, SNTP
Simultaneous communication with up to 4 TCP clients
LEDs for network status diagnostics
Support for data logging
Built-in real-time clock
Free of charge configurator
Synchronous configuration update of two or more selected modules

The daisy-chain connectivity and support for Ethernet auto-bypass prevent accidental loss of communication if one of the modules unexpectedly shuts down

Parameter Name	Parameter Value
Signal type	digital
Bus	Ethernet, Modbus TCP
Type	network
Applications	current
Number of inputs/outputs	16 digital outputs with relay output 8 digital outputs
