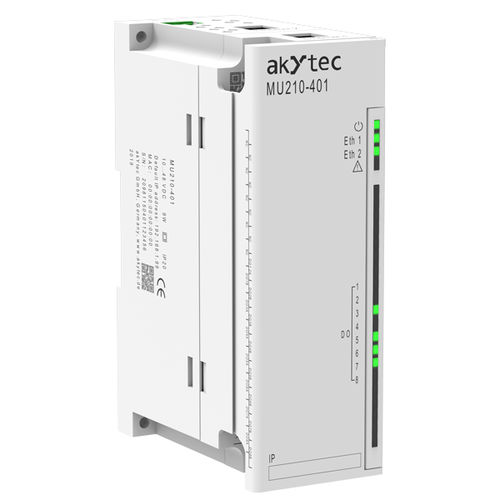

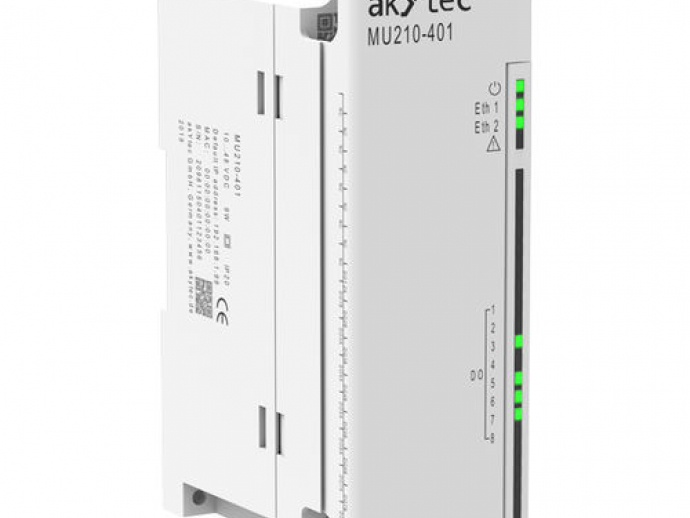

The digital output module MU210 has 8 or 16 digital outputs (relay or transistor outputs). The max. current load is 5 A at 250 V AC or 3A at 24 V DC. To communicate the input data to a controller, an Ethernet port and Modbus TCP are at your disposal. The module requires 24V DC input power and can operate in the temperature range between -40 and +55 °C.

Pulse-width modulation (PWM)
2 bypass-capable Ethernet ports
Support for daisy-chain wiring
Support for Modbus TCP, MQTT, SNMP, SNTP
Simultaneous communication with up to 4 TCP clients
LEDs for network status diagnostics
Support for data logging
Built-in real-time clock
Free of charge configurator
Synchronous configuration update of two or more selected modules

The daisy-chain connectivity and support for Ethernet auto-bypass prevent accidental loss of communication if one of the modules unexpectedly shuts down

Parameter Name	Parameter Value
Signal type	digital
Bus	Ethernet, Modbus TCP
Type	network
Number of inputs/outputs	16 digital outputs 8 digital outputs
Other characteristics	relay
