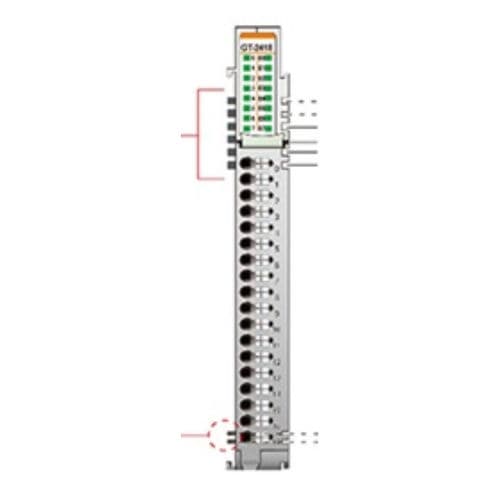

24VDC/0.5A
Transistor SINK
Diagnostics
18pt removable terminal block

General description
Article number - 100-8128
Warranty - 2 year
Article status - Active
Shock operating - IEC 60068-2-27 (15G)
Vibration resistence - Sine vibration (based on IEC 60068-2-6), 5 ~ 25Hz: ±1.6mm, 25 ~ 300Hz: 4G, Sweep rate: 1 octave/min., 20 cycles, Random vibration (based on IEC 60068-2-64), 10 ~ 40Hz: 0.0125g²/Hz, 40 ~ 100Hz: 0.0125 → 0.002g²/Hz, 100 ~ 500Hz: 0.002 g²/Hz, 500 ~ 2000Hz: 0.002 → 1.3 x 10-4g²/Hz, Test time: 1hrs for each test
Industrial emissions - EN 61000-6-4/A11: 2011
Industrial immunity - EN 61000-6-2: 2019
Installation position - Horisontal, Vertical
Product certifications - CE, UL, cUL, FCC, RoHS, China RoHS, Reach
Power dissipation - Max. 55mA @ 5VDC
Isolation - I/O to Logic: Photocoupler isolation, I/O to Field Power: Non-Isolation
Field power - Nominal supply voltage: 24VDC, Voltage range: 60℃: 18~32VDC, 70℃: 18~26.4VDC
Weight - 65g
Module size - 12x109x70mm
Environmental
Mounting - 35mm DIN rail
Operating temperature - -20 ~ 60℃
Storage temperature - -40 ~ 85℃
UL temperature - -20 ~ 60℃
Relative humidity - 5 ~ 90% non-condensing
Digital output module specifications
Outputs per module - 8 point SINK
Output current rating - Max. 0.5A per channel, Max. 4A per unit
Output signal delay - OFF to ON: Max. 0.3ms, ON to OFF: Max. 0.4ms
ON state min current - Min. 1mA
Output voltage range - Nominal supply voltage: 24VDC, Voltage range: 60℃: 18~32VDC, 70℃: 18~26.4VDC
ON state voltage - Max. 0.3VDC @ 25℃, , Max. 0.5VDC @ 60℃
OFF state leakage current - Max. 20uA
Common type - 8 point / 2 COM
Protection - Over current limit: 3.5A@ 25℃ per channel, Thermal Shutdown: 175℃, Short circuit protection

Parameter Name	Parameter Value
Signal type	digital
Type	transition module
Applications	current
Number of inputs/outputs	8 digital outputs
