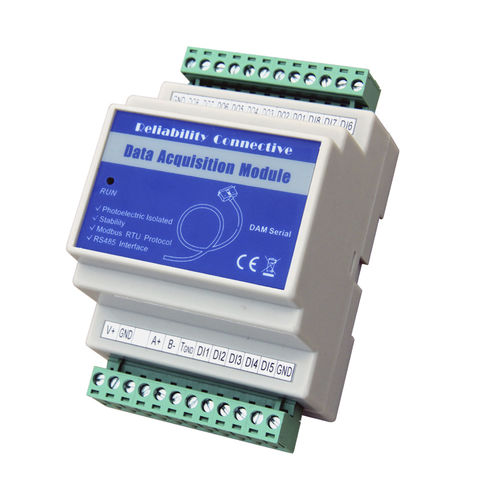

The DAM144 is for controlling 24 triode drivable digital output(50V/100mA,can be TTL or Pulse output). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC.

The DAM144 is used widely in industrial automation control systems. E.g.: Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.

The DAM144 is an industrial class, high reliability, low-power consumption, high stability and high precision data acquisition module.

The DAM144 with fire retardant shell, standard 35mm DIN rail makes it easy to install in fields.

Mainly Features :
Ø 24 drivable digital output(triode, not relay,50V/100mA), can be setup as TTL output or Pulse output(impulse width 0.1~20S);

Ø Wide range power supply with reverse polarity connection protection;

Ø Modbus RTU Protocol;

Ø ESD Protection circuit for RS485 serial port;

Ø Using industrial-grade chips;

Ø Built-in watchdog ensure it reliability;

Ø Lightning protection ensure it stability;

Ø LEDs for status indication makes it easy to program in filed.
Rated Power Input
10~30VDC(Peak Voltage must≤40V)

Power Consumption
Typically ≤3W

Communication Protocol
Modbus RTU

Modbus Address
1~247

Data Format
n,8,1; e,8,1; o,8,1 or n,8,2

Communication Interface
RS485

Baud Rate
1200, 2400, 4800, 9600, 19200, 38400Bps

Drivable Output
16 drivable digital output(triode, not relay, 50V/100mA)

Isolated Type
Power / RS485 Serial port/drivable output use the same GND, no isolated.

Withstand Tests
Output /Shell: 2000VAC/min.; 500VDC>100 MΩ

Installation Type
35mm DIN Rail

Operation Temperature
-20~70℃;

Parameter Name	Parameter Value
Signal type	digital
Bus	Modbus RTU, TTL, RS485
Applications	automation
Mounting	DIN rail
