About
- Supports open collector (Sink) output type
- Rated voltage : 8 ~ 30 VDC
- Rated current : 200 mA (max load)
- Over voltage protection : +40 VDC
- Pulse output frequency : 1 KHz
- Opto-isolator response time : 150 us (max)
- Isolation voltage : 2000 VDC
- -40 ~ 70°C operating temperature

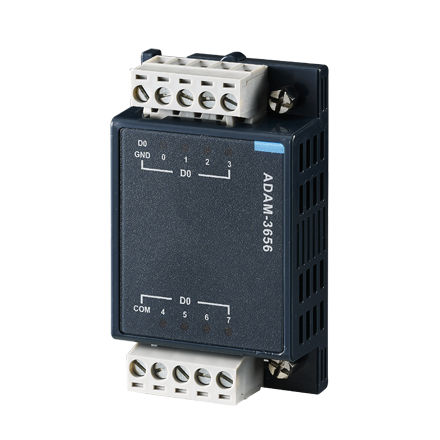

ADAM-3656 is a 8-ch digital output expansion module for ADAM-3600-C2G intelligent RTU.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Signal type |
digital
|
| Number of inputs/outputs |
8-channel
|
