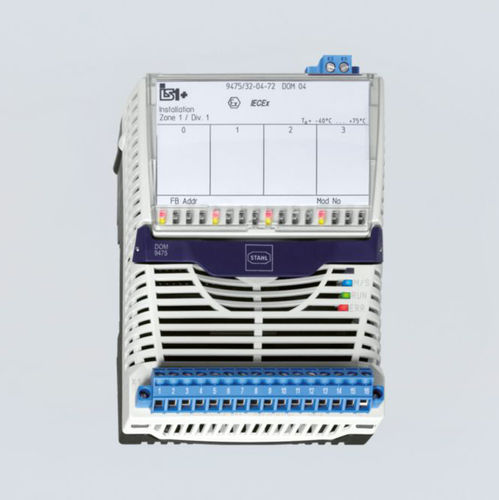

Digital output module 9475/32-04-72

Digital output module 9475/32-04-72

Digital output module 9475/32-04-72

About


Max. power consumption: 6.00 W
Ex interface zone: 1, 2, 21, 22
Number of channels: (depends on nominal output current), 4 (3) Ex i inputs
Ex i output rated operation: 11.7 V/95 mA, 12.3 V/75 mA

Highlights - 4 channels for I.S. hydraulic and solenoid valves up to 95 mA
Ex ib outputs with line fault monitoring and LED error and status indication for each channel plus SIL 2 plant-Stop input
Module hot swap in Zone 1 and Class I, Div. 2
Functional Description - 9475/32-04-72 series digital output modules for Zone 1 and Class I, Div. 2 have four channels for actuating hydraulic and solenoid valves or indicator lamps. An additional I.S. control input is suitable for safe output shutdown up to SIL 2. All outputs are short-circuit proof, galvanically isolated from the system and individually monitored to check for wire breakage/short-circuiting.

EXPLOSION PROTECTION
Application range (zones) - 1, 2, 21, 22
Ex interface zone - 1, 2, 21, 22
IECEX gas certificate - IECEx DEK 12.0070X
IECEx gas explosion protection - Ex ia [ib Gb] IIC T4 Gb
IECEx dust certificate - IECEx DEK 12.0070X
IECEx dust explosion protection - [Ex ib Db] IIIC
ATEX gas certificate - DEKRA 12 ATEX0232X
ATEX gas explosion protection - II 2 (2) G Ex ia [ib Gb] IIC T4 Gb
ATEX dust certificate - DEKRA 12 ATEX0232X
ATEX dust explosion protection - II (2) D [Ex ib Db] IIIC



PARAMETERS

Parameter Name Parameter Value
Signal type
digital
Type
remote
Applications
for hazardous locations
Number of inputs/outputs
  • 4-channel
  • 8-channel
Other characteristics
  • ATEX
  • intrinsically safe
