Digital output module 57832

Digital output module 57832

Digital output module 57832

About


Switch remotely...

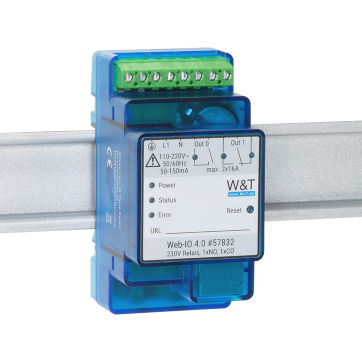

With the Web-IO 4.0 230V Relay 1xNO, 1xCO 230V switching signals can be controlled via TCP/IP Ethernet. There are numerous Web and network services available for switching up to 16A with the two integrated relays - even directly from the browser or from a smart phone. Using protocols such as MQTT and REST the Web-IO is an ideal fit in the world of Industry 4.0 and the Internet of Things.

Switching signals:
2 switching outputs:
1 x potential-free normally open contact for 230V mains
1 x potential-free changeover contact for 230V mains
Switching currents up to max. 16A
Connectivity:
Intuitive Web interface for simpler operation
Select between German or English
Switching the outputs directly from the Web interface
Adaptation for smartphone
HTTP and HTTPS
Current Industry 4.0 protocols:
REST and MQTT support
AMQP on request
Box-to-Box
Pass switching signals over the network 1:1
Alarm and reporting functions:
Email for alarm sending or as status report
SNMP polling / alarm traps
Switching your outputs in alarm situations
Switching the outputs on another Web-IO
HTTP requests for controlling third-party devices
Up to 12 actions can be configured
Dynamic integration into other Web sites:
Direct access to the contacts via HTTP requests, AJAX and JavaScript
Additional software interfaces for incorporating into your systems/databases:
OPC
Modbus TCP
Syslog
TCP and UDP sockets, client and server
FTP (data logging)



PARAMETERS

Parameter Name Parameter Value
Signal type
digital
Bus
Modbus TCP
Type
network
Number of inputs/outputs
with relay output
Mounting
DIN rail mounted
