Binary input/output (I/O) terminal with IEC 61850 interface

Easy to use binary I/O extension

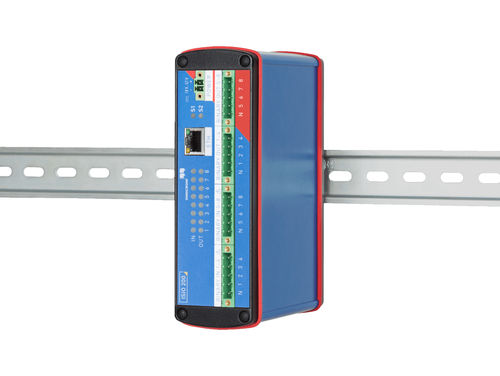

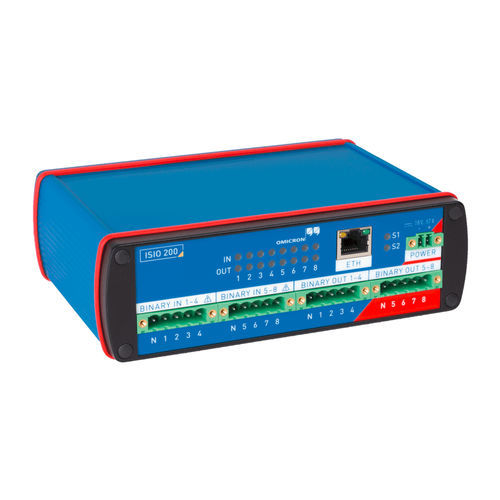

ISIO 200 is a simple and versatile binary I/O terminal with IEC 61850 interface. For communicating with CMC test sets and real-time message exchange with peer devices, the fast GOOSE messaging is used. By using Client/Server communication, ISIO 200 can be integrated into Substation Automation Systems (SAS) and communicate to a station controller.

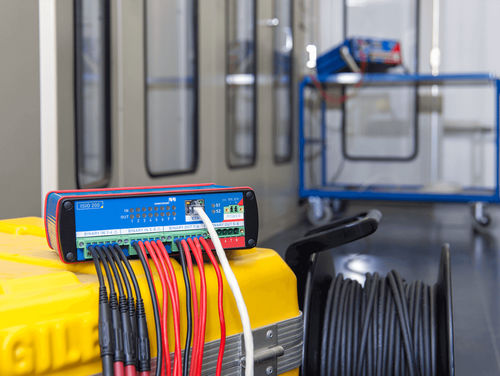

In combination with a CMC test set, ISIO 200 extends the binary I/O capability of the test system. As a component of a SAS, it handles additional binary signals. Due to its compact design, binary I/O terminals can be put wherever necessary.

Key features

Testing of complex protection schemes with CMC test sets
Remote control of binary outputs
Integration of conventional devices into IEC 61850 systems
Status interface with data models for overcurrent relays, switchgear, and teleprotection
Indication of GOOSE timeouts and malfunctions using alarm output contact

Parameter Name	Parameter Value
Signal type	digital
Bus	SAS
Other characteristics	compact
