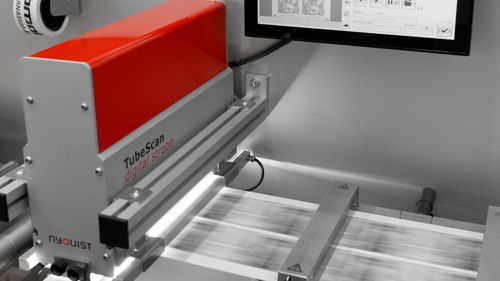

TubeScan product series

For 100% print quality, monitoring, web inspection systems are not suitable and must be combined with print inspection systems. The TubeScan product family (TubeScan digital strobe, TubeScan digital strobe XL, TubeScan eagle view) is your ideal and cost-efficient entry into 100% print inspection – especially in combination with the inspection workflow QLink, consisting of QLinkPress, QLinkEditor, QLinkRewinder and QLinkViewer.


All TubeScan models offer the following - partly optional - features:

Small foot print, only requires 125 mm (5") in web direction, 300 mm (12") in height
Can take and display up to 30 images per second in live mode – seamless monitoring of every repeat in real time
Crisp display of image due to high camera resolutions
Display of detected errors in real time on the HD monitor, during setup and production
No health risk, less tiring compared to conventional monitoring using strobe lights
Pulsed LED illumination for extremely low power consumption, especially for diffuse, translucent, reflective and luminescent (UV) materials
UV illumination for checking UV-active applications, such as varnishes, adhesives, silicones or other luminescent coatings
Image stabilization without print mark sensor due to automatic format synchronization over the entire speed range of the machine
Accurate length and repeat counting
Secondary zones and masking for different inspection tasks
Relative distance monitoring based on edges or shapes

Parameter Name	Parameter Value
Technology	digital LED UV
Operational mode	automatic
Applications	for the printing industry
Type	quality
