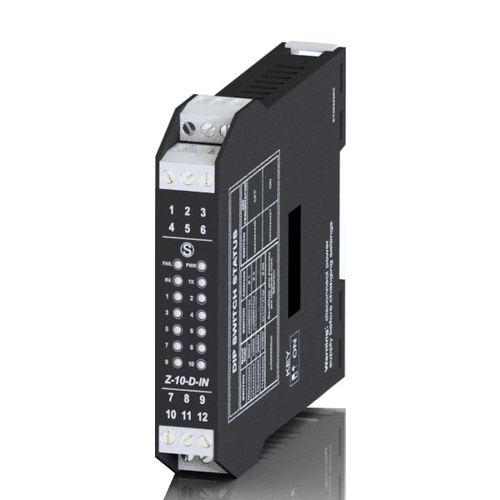

Digital input module Z-10-D-IN

Digital input module Z-10-D-IN

Digital input module Z-10-D-IN

About


Z-10-D-IN is a module with 10 digital inputs, 16 Vdc self-powered common negative and removable terminals section 2.5 mm. Unlike Rev. Hw1, this module includes 10 inputs with a 32-bit totalizer with a maximum frequency of 2.5 kHz. Among the functions of the Z-10-D-IN is the measurement of frequency, period, T(ON) and T(OFF) for all inputs and the possibility to set the totalizers for counting forward or backward with overflow indication for each totalizer. ON-LINE configuration is possible. The use of a USB/RS485 converter with ModBUS RTU protocol is mandatory for PC programming.

Power Supply: - 10..40 Vdc; 19..28 Vac (50-60 Hz)
Insulation: - 1.500 Vac
Inputs: - 10-CH (reed, proximity, pnp, npn, contact) isolated, common negative, self-powered 16 Vdc, protected from transients up to 600 W/ms
Counters: - up to 10 inputs @ 32 bit, max freq. 2.5 kHz
Communication: - RS485 2 wire, ModBUS RTU slave protocol
Dimensions: - 17,5 x 100 x 112 mm
Mounting: - 35 mm symmetrical DIN (46277) rail



PARAMETERS

Parameter Name Parameter Value
Signal type
digital
Bus
Modbus RTU, USB, RS485
Number of inputs/outputs
10-I
Mounting
  • DIN rail
  • line
Other characteristics
slave
