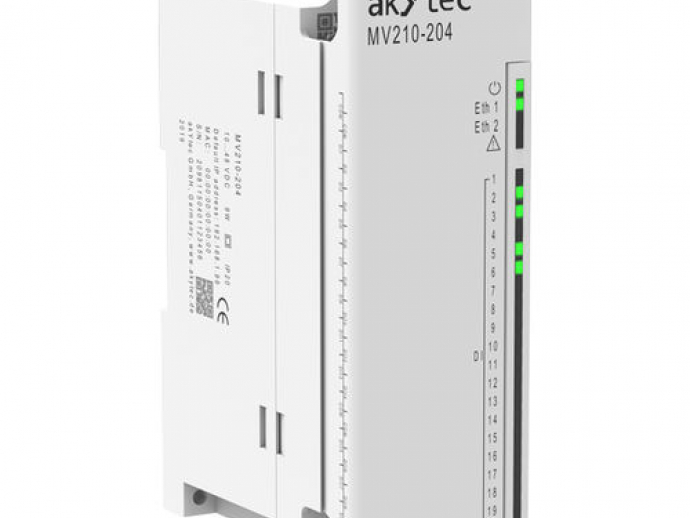

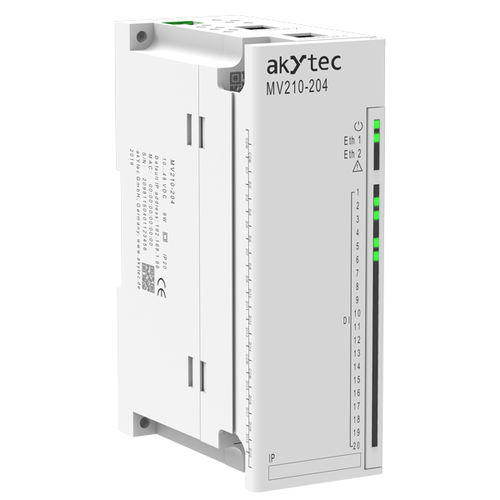

Digital input module MV210-204

Digital input module MV210-204

Digital input module MV210-204

About


The digital input module MV210 has 20 or 32 digital inputs able to connect switch contacts as well as NPN or PNP transistors. To communicate the input data to a controller, an Ethernet port and Modbus TCP are at your disposal. The module requires 24V DC input power and can operate in the temperature range between -40 and +55 °C.

The digital input module MV210 has 20 or 32 digital inputs able to connect switch contacts as well as NPN or PNP transistors. To communicate the input data to a controller, an Ethernet port and Modbus TCP are at your disposal. The module requires 24V DC input power and can operate in the temperature range between -40 and +55 °C.

High-speed counting with 100-KHz inputs
2 bypass-capable Ethernet ports
Support for daisy-chain wiring
Support for Modbus TCP, MQTT, SNMP, SNTP
Simultaneous communication with up to 4 TCP clients
LEDs for network status diagnostics
Support for data logging
Built-in real-time clock
Free of charge configurator
Synchronous configuration update of two or more selected modules

The daisy-chain connectivity and support for Ethernet auto-bypass prevent accidental loss of communication if one of the modules unexpectedly shuts down



PARAMETERS

Parameter Name Parameter Value
Signal type
digital
Bus
USB, Ethernet, Modbus TCP, Modbus
Type
remote
Applications
automation
Number of inputs/outputs
32 digital inputs
Mounting
  • DIN rail
  • wall-mount
Other characteristics
  • configurable
  • compact
  • slave
  • universal
