Backplane
Controllers: PROFINET IO Device, PROFIBUS DP Slave
Modules: 32 (all slots)
Power supply: provided through the backplane
Current consumption: Typ. ±169 mA (500 mA max)
Compatible backplane units: 101-200011, 101-200022, 101-200023, 101-200024, 101-200027

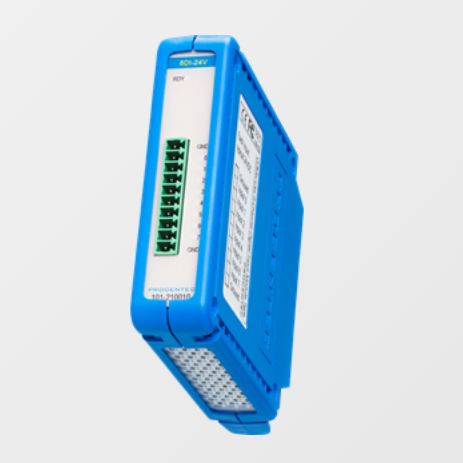

Digital Inputs
8 digital inputs on 1 connector
240 mW at 24 V
3 .. 32 VDC
Input detection frequency: Max. 3 ms

Digital Input Connector
Pins: 1 = GND, 2 ..9 = D10..D17, 10 = GND1
Wire diameter (for the screw terminals): < 1.5 mm2
Wire type: Stranded or solid core

Others
Head Station firmware: V1.271 and later
Dimensions (LxWxH): 140 x 110 x 25 mm
Operating temperature: 0 .. 60 °C
Weight: 100 g

Parameter Name	Parameter Value
Signal type	digital
Bus	ProfiNet
Number of inputs/outputs	8 digital inputs
