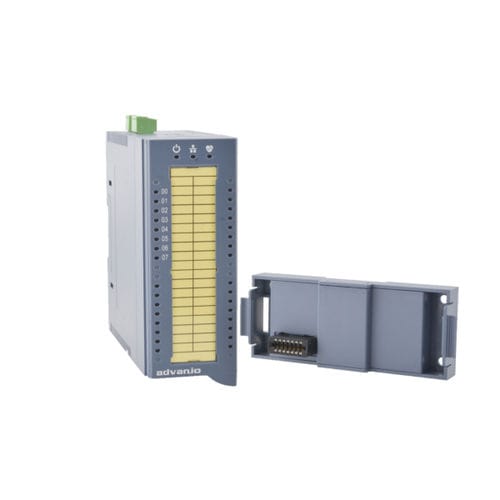

W-M1B501 | 16-Ch Digital Input / 16-Ch Digital Output Module

16-Ch Digital Input / 16-Ch Digital Output
Dry / Wet Contact
Input Resistance 10KΩ
Over-Voltage Protection 70 VDC
NPN Output Type
Normal Output Current 500mA per Channel

Wolf General Series Remote I/O - Digitalizing your Industry!
The Wolf Series Remote I/O Modules are designing to withstand wide operating temperature and work reliably in harsh environments, and are easy to configure, make mass deployment simple. The Wolf General Series Remote I/O Modules include Analog, Digital, and Relay modules which also with 8~32 channels.
We, Advanio, is also welcome industries who may need for individual OEM / ODM service.


General
Power Input Range10~60 VDC
Power Consumption1.6 W @ 24 VDC
Watchdog TimerSystem (1.6 Second Fixed)
Communication (Programmable)
Connector2 Plug-In Terminal Block (#16~30 AWG)
Temperature(Operating)-25~70℃
Temperature (Storage)-30~75℃
Humidity5~95%
InterfaceRS-485
Communication ProtocolModbus RTU
Communication SpeedSerial: From 1200 to 115.2 kbps
Communication DistanceSerial: 1.2 km
Digital Input
Channels16 Channels
Dry ContactLogic Level 0: Open; Logic Level 1: Close to GND
Wet ContactLogic Level 0: 3V (Max.); Logic Level 1: 10 to 50V
Input Resistance10KΩ
Isolation Voltage2500 VDC
Over-Voltage Protection70 VDC
Frequency Input Range100Hz (16bit)
Digital Output
Channels16 Channels
Output TypeNPN
Output Voltage Range3.5-30V
Normal Output Current500mA per Channel
Isolation Voltage2500 VDC
Startup Value SettingYes
Communication Safety Value SettingYes
DimensionsW×H×L =47.2×121.1×120.1mm

Parameter Name	Parameter Value
Signal type	digital
Type	remote safety
Applications	current voltage
Number of inputs/outputs	16 digital inputs 16 digital outputs
Other characteristics	programmable
