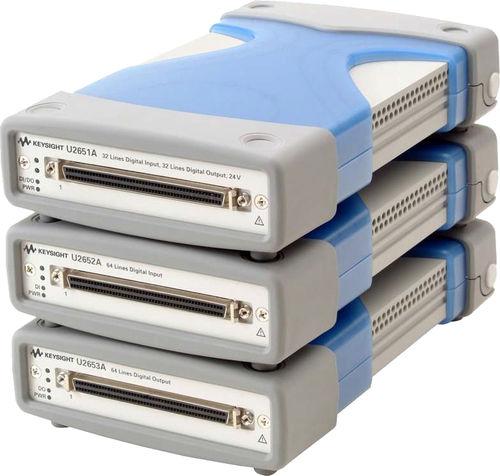

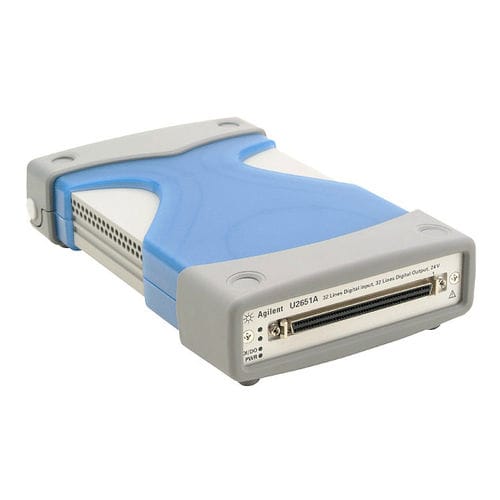

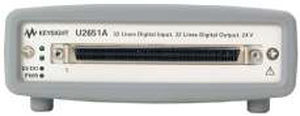

Keysight’s U2600A Series isolated digital IO DAQs are high-performance modules with up to eight channels of 64-bit high density, opto isolated digital input and digital output. With an output voltage range of 5 to 35 V, you are able to drive a wide array of actuators and control more sensors using just one USB digital IO device.

Opto isolation for reliable and improved signal quality
Quick USB setup for plug-and-play configuration
Modular capability–when slotted into the U2781A product chassis
Up to 64 opto-isolated digital I/O lines with 1250 V peak transient protection

On-board isolated +5 V power supply eliminates the need for an external source
Interrupt function for automatic triggering and virtual port grouping function
SCPI and IVI-COM support and compatibility with a wide range of KDEs
BenchVue software is included for quick setup and data logging to PC

PathWave BenchVue USB Modular DAQ Pro Software

Intuitively connect and control your USB data acquisition (DAQ) systems, capture screen images, and log data measurements for more efficient analysis.

Perform unrestricted data logging with limit checking and alerts.
Control measurement channels for your specific test configurations from multiple data acquisition units.
Log and view real-time measurements with a variety of display types.
Export data quickly to popular tools such as Microsoft Excel and Word.
Receive KeysightCare software support subscription and license with each new instrument purchase.

Parameter Name	Parameter Value
Signal type	digital
Bus	USB
