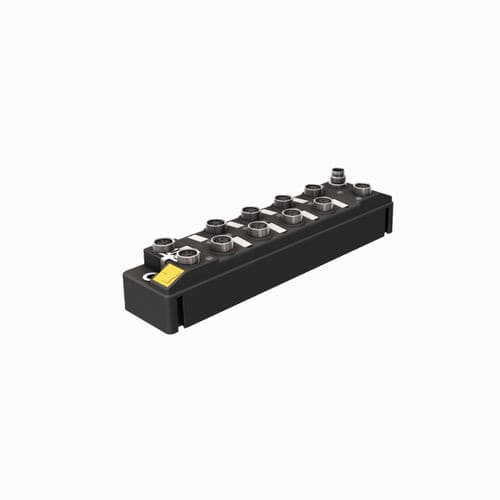

PROFINET device, EtherNet/IP device or Modbus TCP slave
Integrated Ethernet switch
Supports 10 Mbps / 100 Mbps
2x M8, 4-pin, Ethernet fieldbus connection
Glass fiber reinforced housing
Shock and vibration tested
Fully potted module electronics
Protection classes IP65, IP67, IP69K
4-pin M8 male connector for power supply
Galvanically isolated voltage groups
ATEX Zone 2/22
Input diagnostics per group
Max. 2 A per output
Output diagnostics per channel
One freely selectable digital channel per port
Programmable ARGEE

Country of origin - DE
Weight - 215 g

Technical Data
Network protocol - Modbus TCP, EtherNet/IP, PROFINET
Signal type - Digital input, Digital input/output, Digital output
Connection technology signal - M8
Device type - I/O Module, Compact station, Field Logic Controller (ARGEE)
Fieldbus transmission rate - 10/100 Mbps
Fieldbus connection technology - 2 × M8, 4-pin
Ambient temperature - -40…+70 °C

Parameter Name	Parameter Value
Signal type	digital
Bus	Ethernet, EtherNet/IP, Fieldbus, Modbus, ProfiNet
Applications	voltage
Mounting	integrated
Other characteristics	compact configurable programmable IP67 IP65 universal
