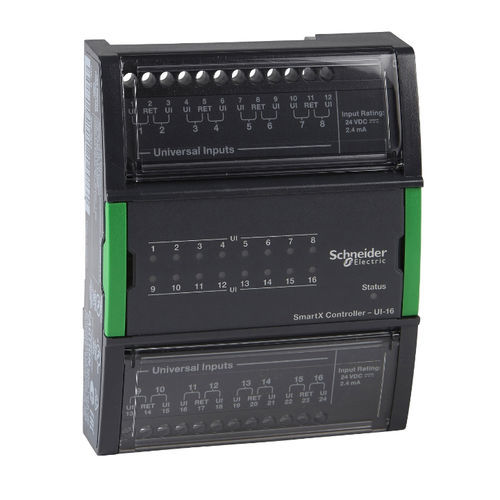

The SpaceLogic UI-16 is a universal input, 16 channel I/O expansion module for the SpaceLogic AS-P Server. The universal inputs are ideal for any mix of temperature, pressure, flow, status points and similar point types in a building control system. The UI-16 I/O expansion module features 16 universal inputs. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. This I/O module requires a SpaceLogic Central I/O Terminal Base (SXWTBIOW110001).

Parameter Name	Parameter Value
Signal type	digital
Applications	temperature
Number of inputs/outputs	16-I/O
Mounting	DIN rail wall-mount
Other characteristics	universal
